SKU:
LNK 76412031
$ 1.401,02
1-2 weeks delivery time
-
+
Lewmar 69100021 from the VX1 series is a lightweight, easy-to-assemble vertical windlass for vessels 8.5 to 15 meters, made from stainless steel and composite parts. This Gypsy Only (GO) model includes motor/gearbox, relay, chain drive, and chain counter sensor but excludes switch and fuse. It features a hybrid chain drive for quiet operation, IP68 and non-sparking motor protection, worm gear transmission, and 500W motor power with a max pull force of 675 daN.
- Description
- Ask a Question
-

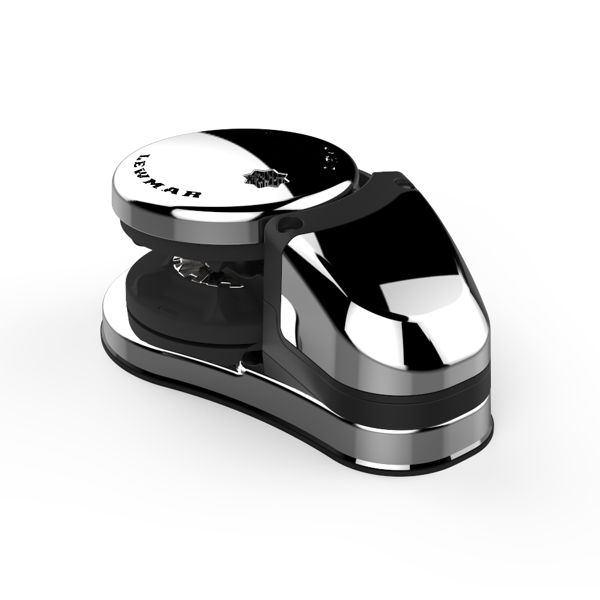

Lewmar 69100021 - Vertical Windlass VX1 GO 6/7mm 12V - 500W

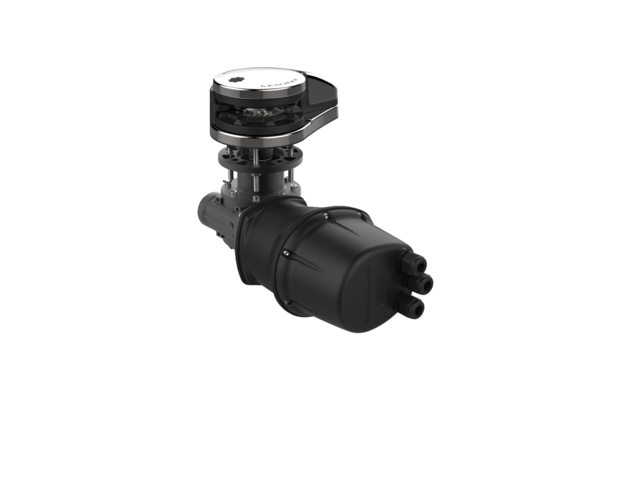

The VX1 series includes lightweight, easy-to-assemble vertical windlasses designed for ships 8.5 to 15 meters (28 to 50 ft). Constructed from stainless steel and composite parts, this Gypsy Only (GO) deck unit set features a motor/gearbox, relay, chain drive, and chain counter sensor. Switch and fuse are excluded.
Key features include a hybrid chain drive for quieter operation, IP68 and non-sparking motor protection, and worm gear transmission for reliability and safety. Available with multiple engine powers (500W, 700W, 1000W, 1500W), the design emphasizes reduced weight.
- Article Number: 76412031
- Manufacturer Number: 69100021
- Lewmar type: VX1 GO
- Power option V: 12
- Max. motor power W: 500
- Max. pull daN: 675
- Max. line speed m/min: 25
- Working load daN: 169
- Weight kg: 12.5
- Circuit breaker A: 70
- Chain DIN766 mm: 6/7"
-
