SKU:
LNK 18321258
€ 2.135,84
1-2 weeks delivery time
-
+
The Lewmar 39970012 FL70 hatch features a flush-mounted design with a grey acrylic window and white lower frame, measuring 697 x 697 mm. It includes stay supports and friction hinges, fits decks with specially shaped recesses, and offers secure opening control with an approximate 90-degree restriction.
- Description
- Ask a Question
-

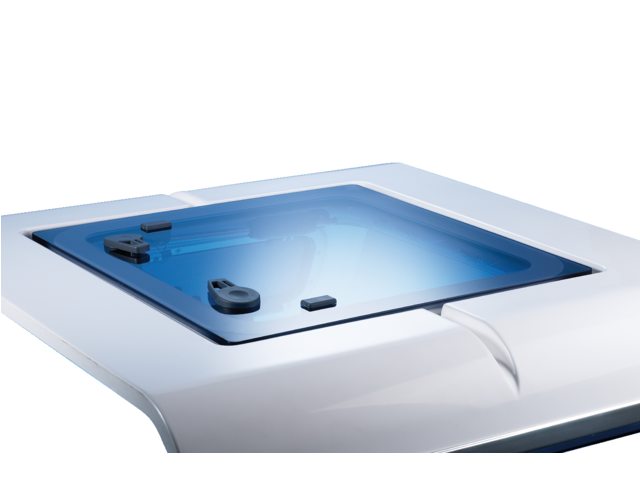

Lewmar 39970012 - FL70 GRY BLK-WHT Hatch 697 x 697 mm
This larger Lewmar hatch model offers a flush-mounted, elegant access point with strong framing and acrylic window, designed to fit perfectly into decks with specially shaped recesses. It comes with stay supports and friction hinges for secure opening control.
- Color: Grey acrylic window, white lower frame
- Dimensions: 697 x 697 mm (Length X x Width Y)
- Height: 32 mm
- Radius R: 10 mm
- Cut-Out Dimensions: 627 x 627 mm, radius 42.5 mm
- Acrylic thickness: 15 mm
- Mounting: Fit to flat surface with tolerance of +/- 1 mm
- Fastening: Hinge section (M6/ 1/4"), lower frame (5 mm CSK screw No. 10 UNC 2 BA)
- Support System: 2 stays, friction lever or friction hinges
- Suitable for CE Area 2 (Deck, Coachroof, Cockpit, Transom)
- Opening restricted to approximately 90 degrees
- Flush installation requires specific deck recess shape
-
