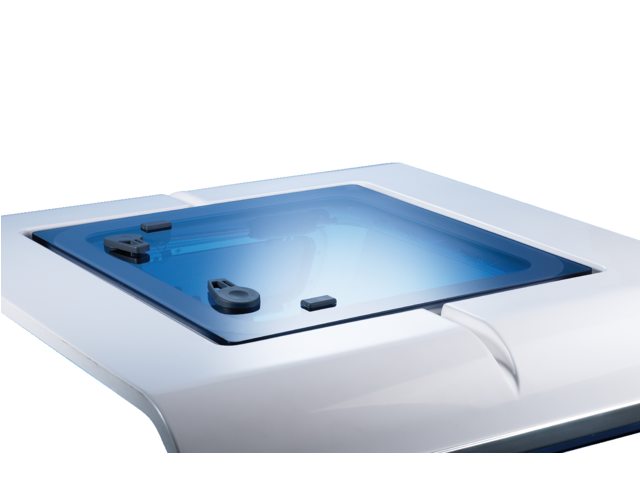

Lewmar 39960012 - FL60 GRY BLK-WHT Hatch 577 x 577 mm
The FL60 hatch combines a flush design with robust construction, featuring a thicker acrylic window and precise mounting instructions. It is ideal for multiple deck areas, supported by stays and friction hardware for controlled opening.
- Color: Grey acrylic window, white lower frame
- Dimensions: 577 x 577 mm (Length X x Width Y)
- Height: 31 mm
- Radius R: 10 mm
- Cut-Out Dimensions: 507 x 507 mm, radius 42.5 mm
- Acrylic thickness: 15 mm
- Mounting: Flat surface fit, tolerance +/- 1 mm
- Fastening: Hinge (M6/ 1/4"), lower frame (5 mm CSK screw No. 10 UNC 2 BA)
- Support System: 2 stays, friction lever or friction hinges
- CE Area 2 suitable for Deck, Coachroof, Cockpit, and Transom
- Opening limited to about 90 degrees
- Flush hatch requires special deck recess
-
