SKU:
LNK 18321256
€ 1.362,03
1-2 weeks delivery time
-
+
The Lewmar 39944012 FL44 GRY BLK-WHT Hatch features a grey acrylic window and white lower frame, designed for flush mounting with precise deck recess requirements and equipped with stays and friction hinges.
- Description
- Ask a Question
-

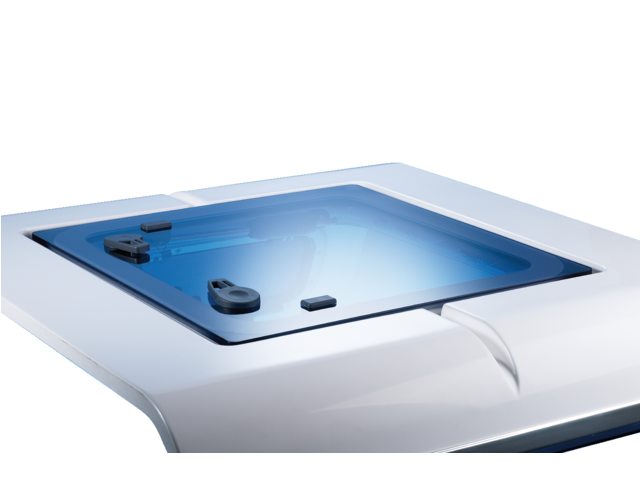

Lewmar 39944012 - FL44 GRY BLK-WHT Hatch 512 x 512 mm
The FL44 hatch by Lewmar is designed for flush mounting with precise deck recess requirements. It features a grey acrylic window and a white lower frame, suitable for various deck areas and equipped with stay supports and friction hinges.
- Color: Grey acrylic window, white lower frame
- Dimensions: 512 x 512 mm (Length X x Width Y)
- Height: 31 mm
- Radius R: 10 mm
- Cut-Out Dimensions: 442 x 442 mm, radius 42.5 mm
- Mounting: Fit to flat surface, tolerance +/- 1 mm
- Fastening: Hinge section (M6/ 1/4"), lower frame (5 mm CSK screw No. 10 UNC 2 BA)
- Support: 2 stays, friction lever or friction hinges included
- CE Area 2 suitable (Deck, Coachroof, Cockpit, Transom)
- Opening restricted to approx. 90 degrees
- Requires specially designed deck recess for flush installation
-
Ask a Question
