€ 2.190,82
1-2 weeks delivery time
-
+
The Lewmar Ocean Hatch Size 70 (39670050) delivers maximum access and light for large boats. It features a corrosion-resistant anodised frame, flat base profile, and friction levers for adjustable lid positioning, with overall dimensions of 694 x 694 mm.
- Description
- Ask a Question
-

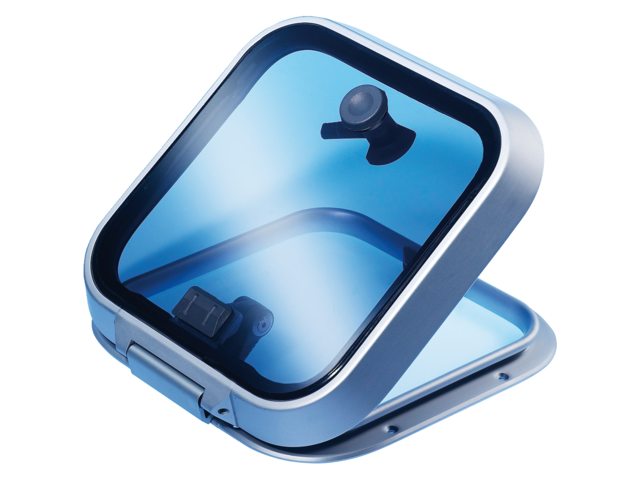

Lewmar 39670050 - Ocean Hatch Size 70 694X694mm
Designed for maximum light and access, the Ocean Hatch Size 70 is a robust solution for larger vessels. It delivers enduring protection and practicality with a frame built to handle the toughest conditions at sea.
- Friction levers allow the lid to remain open at any angle up to 95°
- Built with anodised aluminium frame to resist corrosion
- Deck-side operation supported by external handles when not locked
- Part number: 18416620
- Manufacturer number: 39670050

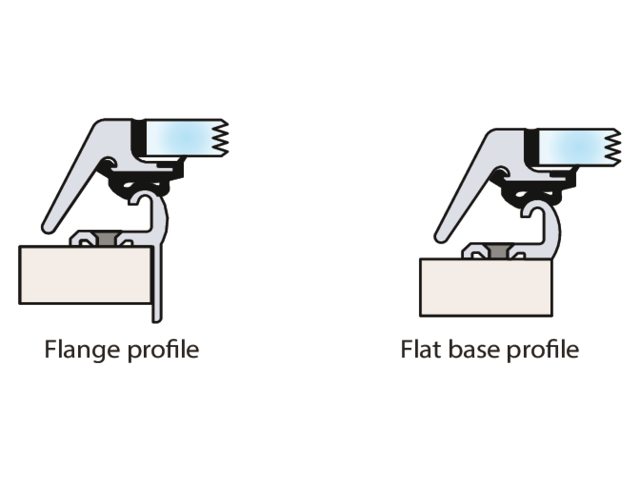

- Installation type: Without flange (flat base profile)

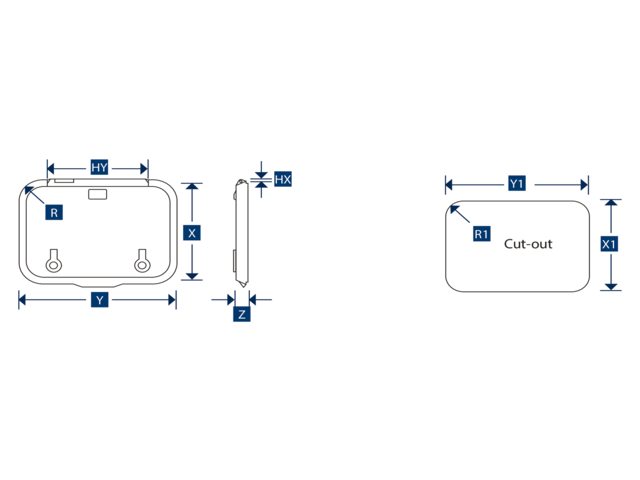

- Size: 70*
- Overall dimensions (X x Y): 694 x 694 mm
- Height (Z): 43.0 mm
- Cut-out size (X1 x Y1): 622 x 622 mm
- Corner radius (R1): 40 mm
- Hinge spacing (HX x HY): 4 x 487 mm
-
