€ 1.603,32
1-2 weeks delivery time
-
+
The Lewmar Ocean Hatch Size 60 (39660050) is ideal for large marine openings, offering a rugged anodised frame and flat base installation. With friction levers and external handles, it provides reliable access and ventilation, measuring 574 x 574 mm for larger vessels.
- Description
- Ask a Question
-

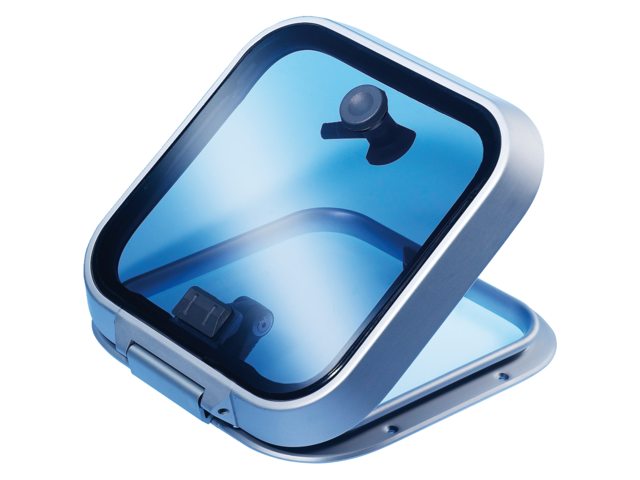

Lewmar 39660050 - Ocean Hatch Size 60 574X574mm
Perfect for larger openings, the Ocean Hatch Size 60 provides a rugged solution for reliable ventilation and access. Its proven construction and material quality make it a favorite among boatbuilders and seasoned sailors alike.
- Friction levers maintain lid position up to 95°
- Made with anodised aluminium frame for superior corrosion resistance
- Includes outside handles for deck operation when not locked
- Part number: 18416500
- Manufacturer number: 39660050

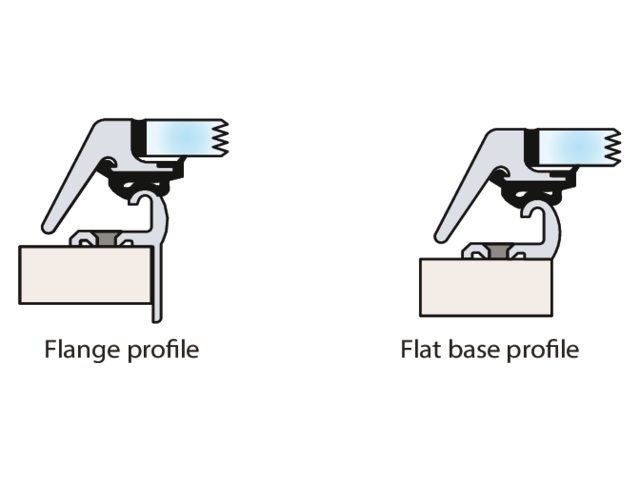

- Installation type: Without flange (flat base profile)
- Size: 60*

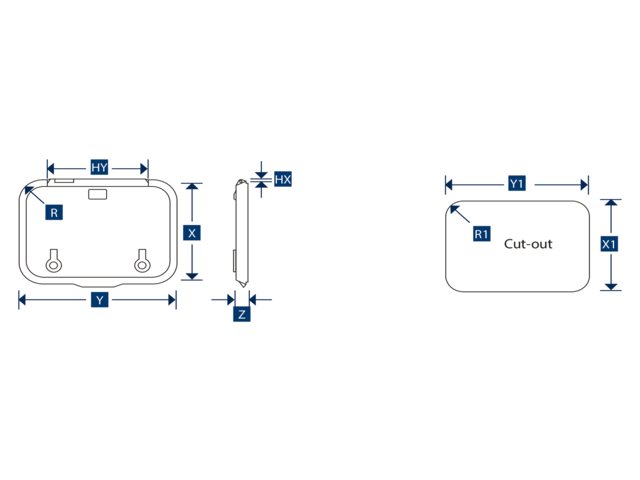

- Overall dimensions (X x Y): 574 x 574 mm
- Height (Z): 43.0 mm
- Cut-out size (X1 x Y1): 502 x 502 mm
- Corner radius (R1): 40 mm
- Hinge spacing (HX x HY): 4 x 367 mm
-
