SKU:
LNK 18318014
€ 585,05
1-2 weeks delivery time
-
+
The Lewmar 393780200 Standard Portlight, size 7RE, is an opening model designed to complement Lewmar hatches with a sleek appearance and easy installation. It is mounted by clamping the cabin sides between inner and outer frames using included screws and can be sealed with either sealant or closed cell PVC tape. This portlight features a white ABS plastic trim and includes a flyscreen, except for sizes 4L and 4R. It complies with ISO 12216 Category A, Area II, III, and IV for opening portlights and Area I, II, III, and IV for fixed ones. Dimensions include 191 mm x 425 mm, with a 95.5 mm radius.
- Description
- Ask a Question
-

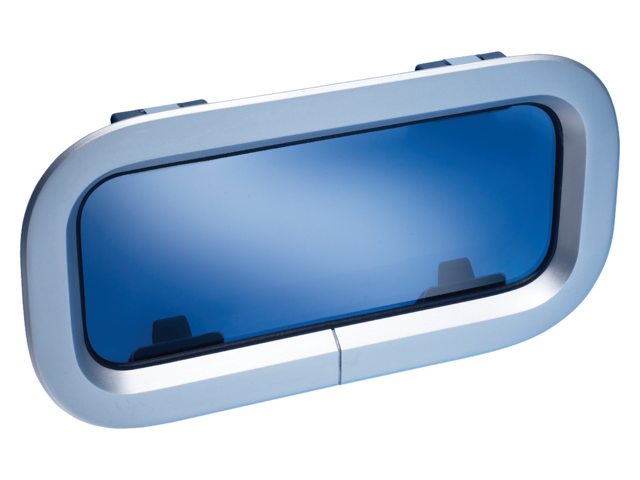

Lewmar 393780200 - Standard Portlights Opening Size: 7RE
Matching perfectly with Lewmar hatches, this Standard Portlight offers a stylish design that is easy to install and use, while being competitively priced.
- Installation by clamping the cabin sides between inner and outer frames with supplied screws fastened into the outer frame
- Can be sealed using either sealant or closed cell PVC tape
- Trimmed with white ABS plastic
- Cut out templates are available at www.lewmar.com
- Supplied complete with flyscreen except for sizes 4L and 4R
- Portlights (french): comply with ISO 12216 Category A, Area II, III, and IV
- Portlights fixed: comply with ISO 12216 Category A, Area I, II, III, and IV
- Article Number: 18318014
- Manufacturer No: 393780200
- Size: 7RE
- Type: Opening

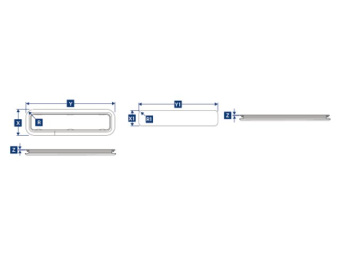

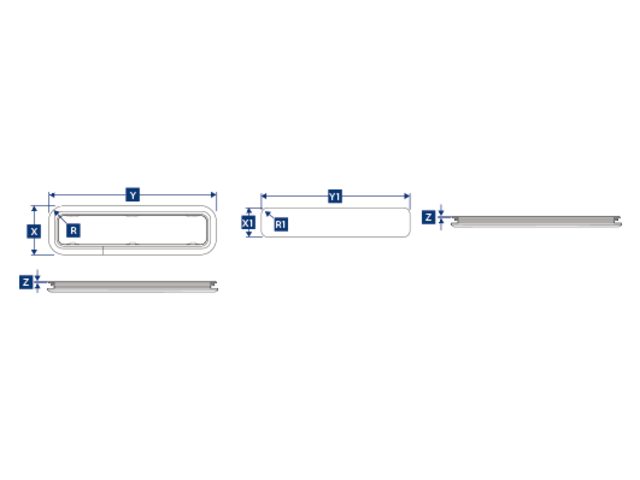

- Dimensions: X = 191 mm, Y = 425 mm, Z = 4 mm
- Radius R = 95.5 mm
- Additional dimensions: X1 = 171 mm, Y1 = 405 mm, Radius R1 = 85.5 mm
-
