SKU:
LNK 18312013
€ 676,38
1-2 weeks delivery time
-
+
The Lewmar 393520200 Standard Portlight Size 5 is a competitively priced, stylish, and user-friendly option that fits any Lewmar hatch. It features easy installation with clamping frames, white ABS trim, and includes a flyscreen. Dimensions are 264 mm by 449 mm, and it complies with ISO 12216 standards for various marine areas.
- Description
- Ask a Question
-

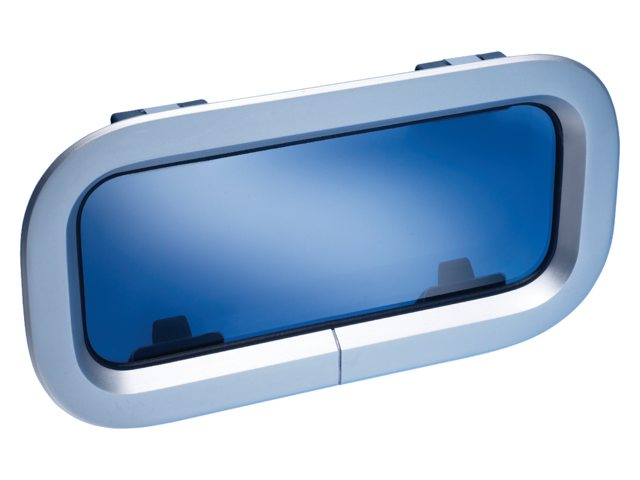

Lewmar 393520200 - Standard Portlights Opening Size: 5, X = 264 mm, Y = 449 mm
The Standard Portlight by Lewmar is designed to fit perfectly with any hatch in their range, combining ease of installation, user-friendly operation, and attractive styling at a competitive price.
- Installation involves clamping cabin sides between inner and outer frames with screws provided, fastening into the outer frame
- Can be mounted using sealant or closed cell PVC tape
- Trim made from white ABS plastic
- Cut-out templates available at www.lewmar.com
- Includes flyscreen, except for sizes 4L and 4R
- French portlights comply with ISO 12216 Category A, Areas II, III, and IV
- Fixed portlights comply with ISO 12216 Category A, Areas I, II, III, and IV
- Manufacturer No: 393520200
- Size: 5
- Type: Opening

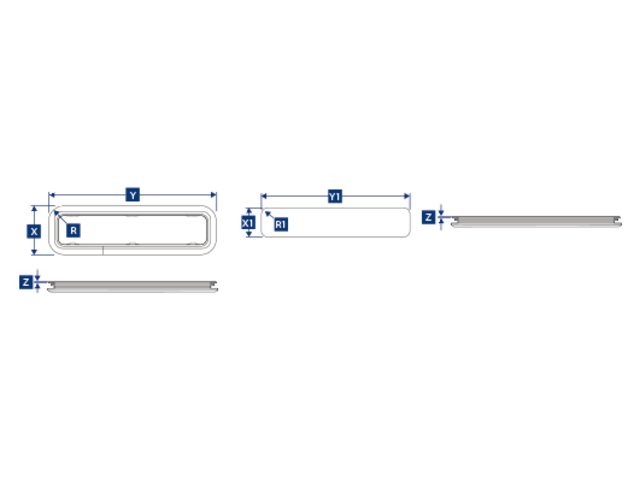

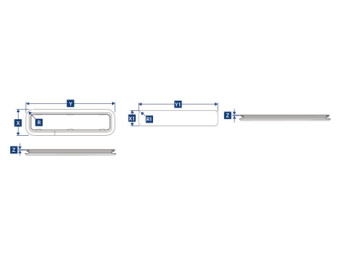

- Dimensions: X = 264 mm, Y = 449 mm, Z = 4 mm
- Radius R = 62.0 mm
- Additional dimensions: X1 = 244 mm, Y1 = 429 mm, Radius R1 = 52.0 mm
-
