SKU:
LNK 18318012
€ 786,24
1-2 weeks delivery time
-
+

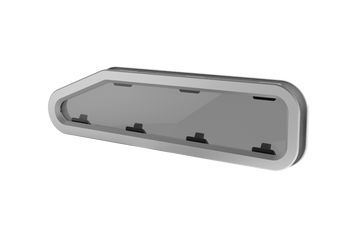

The Lewmar 393460200 Standard Portlight Size 4L mirrors the 4R in functionality and design, featuring a white ABS trim, no flyscreen, and simple installation with clamping frames. It measures 195 mm by 708 mm and is compliant with ISO safety standards for multiple marine areas.
- Description
- Ask a Question
-
Lewmar 393460200 - Standard Portlights Opening Size: 4L
Offering the same sleek, practical design as other Standard Portlights, this model fits seamlessly with Lewmar hatches and is easy to install and operate.
- Installation by clamping cabin sides between inner and outer frames with supplied screws fastening into the outer frame
- Can be sealed using sealant or closed cell PVC tape
- Trimmed with white ABS plastic
- Cut out templates accessible via www.lewmar.com
- Includes flyscreen except for sizes 4L and 4R
- Portlights (french): compliant with ISO 12216 Category A, Area II, III, and IV
- Portlights fixed: compliant with ISO 12216 Category A, Area I, II, III, and IV
- Article Number: 18318012
- Manufacturer No: 393460200
- Size: 4L
- Type: Opening

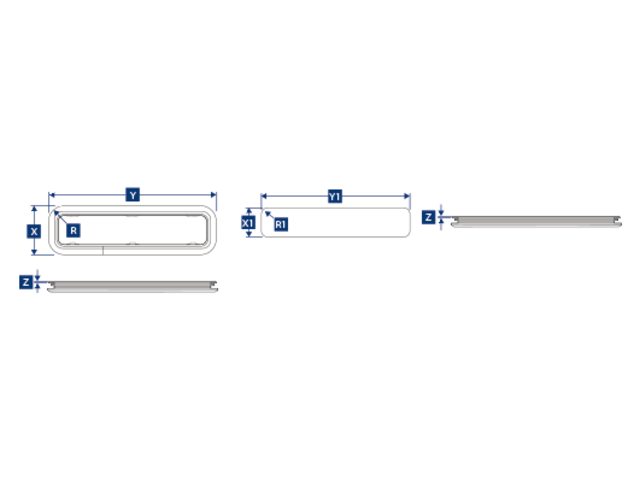

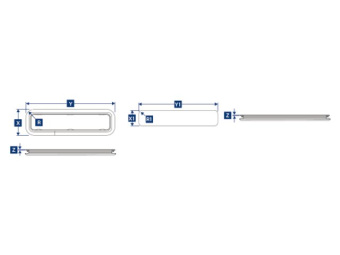

- Dimensions: X = 195 mm, Y = 708 mm, Z = 4 mm
- Radius R = 62.0 mm
- Additional dimensions: X1 = 175 mm, Y1 = 688 mm, Radius R1 = 52.0 mm
-
