SKU:
LNK 18318031
€ 726,88
1-2 weeks delivery time
-
+
Lewmar 393450200 is a fixed portlight with a white ABS internal frame and grey acrylic glass in a left-hand configuration. It measures 195 x 708 mm, includes hinges mounted on the glass edge for clear views, and is built for durability.
- Description
- Ask a Question
-

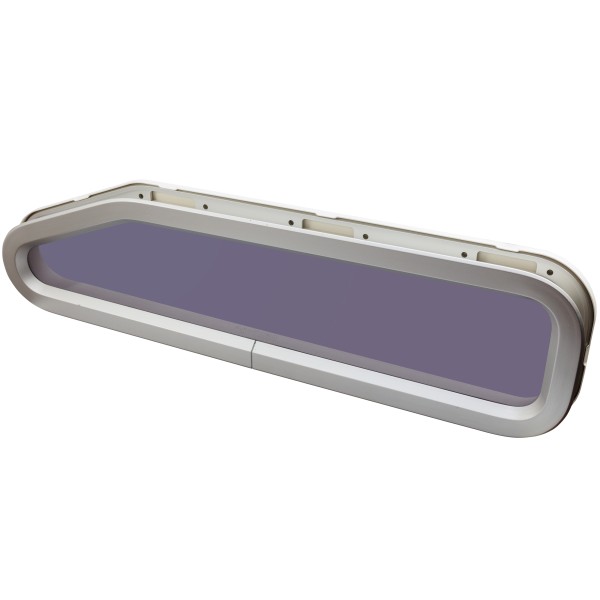

Lewmar 393450200 - 45L GRY Portlight Fixed White Frame 195 x 708mm
This fixed portlight features a standard 4L left-hand configuration with a sleek grey acrylic pane and a contrasting white ABS internal frame. It offers clear visibility with hinges positioned on the glass edge to avoid obstruction. Built for long-term use and optimized for fit and finish.
- Product Number: 393450200
- Size: 4L
- Version: Not opened
- Frame color: White (internal, ABS plastic)
- Glass: Grey acrylic
- Outer frame: Silver
- Type: Fixed, non-openable portlight
- Hinges mounted on glass edge for unobstructed view
- Dimensions:
- Length (X): 195 mm / 7 11/16 in
- Width (Y): 708 mm / 27 7/8 in
- Height (Z): 4 mm / 5/32 in
- Radius (R): 62 mm / 2 7/16 in
- Hole dimensions:
- Length (X1): 175 mm / 6 7/8 in
- Width (Y1): 688 mm / 27 1/16 in
- Radius (R1): 52 mm / 2 1/16 in
- Glass thickness: 8 mm / 5/16 in
- Weight: 2.4 Kg / 5.28 Lb
-
