€ 786,24
1-2 weeks delivery time
-
+
The Lewmar 393440200 Standard Portlight Size 4R delivers functional ventilation with a white ABS trim and easy clamping installation. Measuring 195 mm by 708 mm, this model excludes a flyscreen and meets ISO 12216 standards, ensuring durability in marine environments.
- Description
- Ask a Question
-

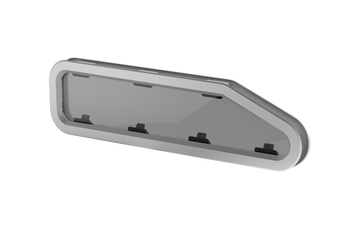

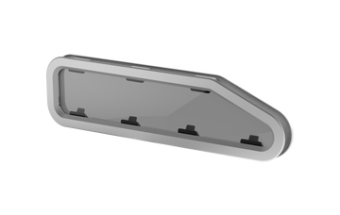

Lewmar 393440200 - Standard Portlights Opening Size: 4R
This Standard Portlight complements any Lewmar hatch with a stylish design that is competitively priced and straightforward to install and operate.
- Secured by clamping the cabin sides between the inner and outer frame using supplied screws fixed into the outer frame
- Installation options include sealant or closed cell PVC tape
- White ABS plastic trim finish
- Cut out shape templates available at www.lewmar.com
- Comes with flyscreen except for sizes 4L and 4R
- Portlights (french): ISO 12216 Category A, Area II, III, and IV compliant
- Portlights fixed: ISO 12216 Category A, Area I, II, III, and IV compliant
- Article Number: 18318011
- Manufacturer No: 393440200
- Size: 4R
- Type: Opening

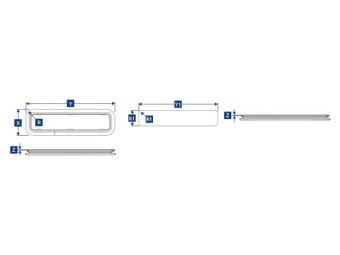

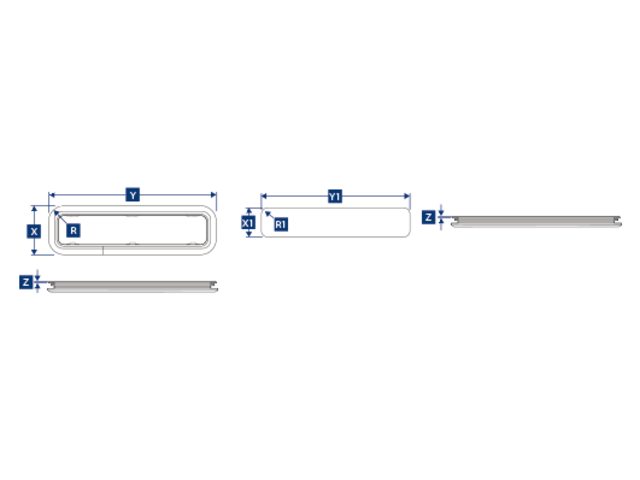

- Dimensions: X = 195 mm, Y = 708 mm, Z = 4 mm
- Radius R = 62.0 mm
- Additional dimensions: X1 = 175 mm, Y1 = 688 mm, Radius R1 = 52.0 mm
-
