€ 770,86
1-2 weeks delivery time
-
+
The Lewmar 393420200 Standard Portlight Size 4 offers a large, elegant solution that fits with Lewmar hatches and features easy installation using clamping frames. At 191 mm by 646 mm, it includes a flyscreen and white ABS trim, and meets ISO marine compliance for various areas.
- Description
- Ask a Question
-

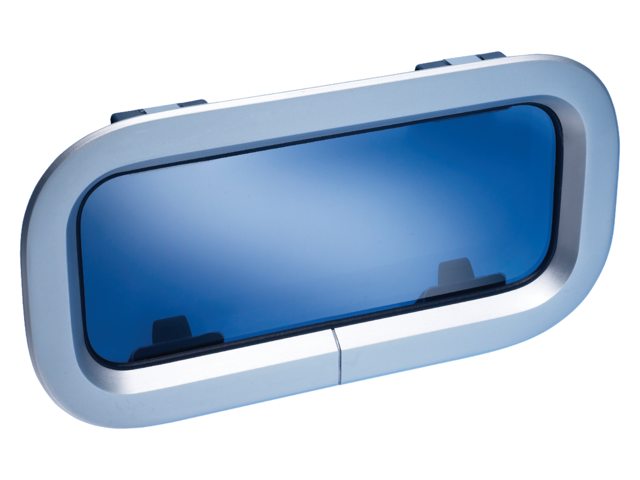

Lewmar 393420200 - Standard Portlights Opening Size: 4
Designed to fit perfectly with any hatch from Lewmar, the Standard Portlight combines style with ease of installation and affordability.
- Installed by clamping the cabin sides between the inner and outer frames using supplied screws fastened into the outer frame
- Installation can be done with sealant or closed cell PVC tape
- Features a white ABS plastic trim
- Cut out template available at www.lewmar.com
- Comes complete with flyscreen except for sizes 4L and 4R
- Portlights (french): comply with ISO 12216 Category A, Area II, III, and IV
- Portlights fixed: comply with ISO 12216 Category A, Area I, II, III, and IV
- Article Number: 18318009
- Manufacturer No: 393420200
- Size: 4
- Type: Opening

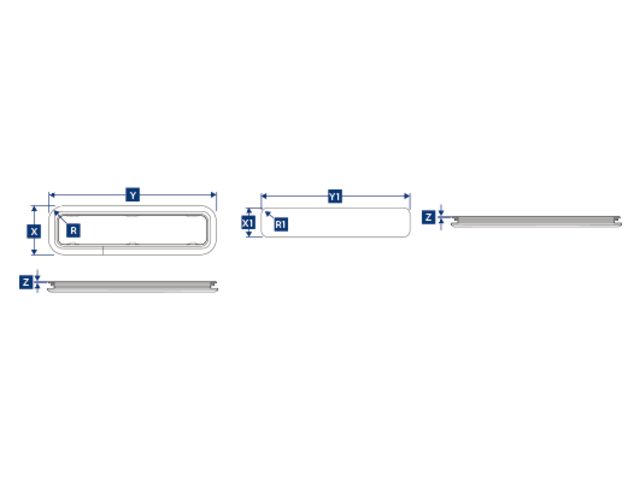

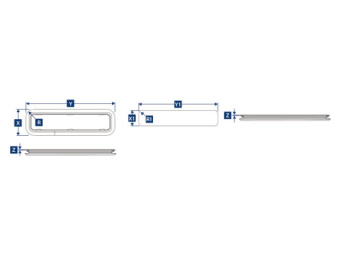

- Dimensions: X = 191 mm, Y = 646 mm, Z = 4 mm
- Radius R = 62.0 mm
- Additional dimensions: X1 = 171 mm, Y1 = 627 mm, Radius R1 = 52.0 mm
-
