The Lewmar 393410200 Standard Portlight, size 4, is a fixed unit built to integrate smoothly with the Lewmar hatch range. Installation involves clamping the cabin sides with screws into the outer frame, and it can be sealed using sealant or closed cell PVC tape. The portlight is trimmed with white ABS plastic and includes a flyscreen, excluding sizes 4L and 4R. It meets ISO 12216 standards for various marine safety categories. Its dimensions are 191 mm x 646 mm, with a 62.0 mm radius.
- Description
- Ask a Question
-

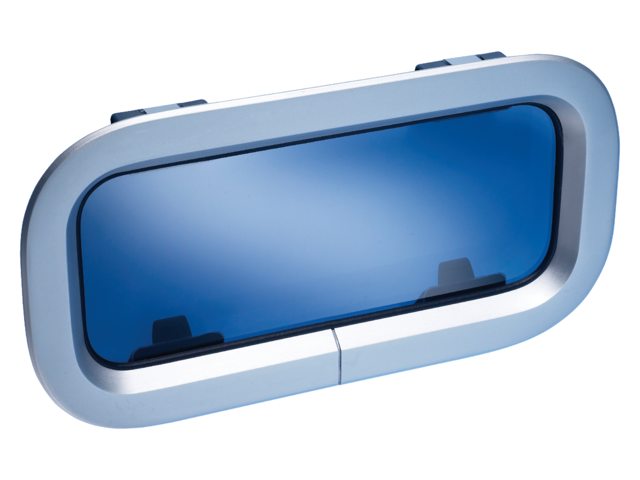

Lewmar 393410200 - Standard Portlights Fixed Size: 4
With a classic design and reliable construction, this fixed Size 4 Standard Portlight is made to integrate seamlessly with the Lewmar hatch range.
- Clamps onto cabin sides using screws provided, fastened into the outer frame
- Can be sealed with sealant or closed cell PVC tape
- White ABS plastic trim finish
- Cut out shape available at www.lewmar.com
- Includes flyscreen except for sizes 4L and 4R
- Portlights (french): ISO 12216 Category A, Area II, III, and IV compliant
- Portlights fixed: ISO 12216 Category A, Area I, II, III, and IV compliant
- Article Number: 18318019
- Manufacturer No: 393410200
- Size: 4
- Type: Fixed

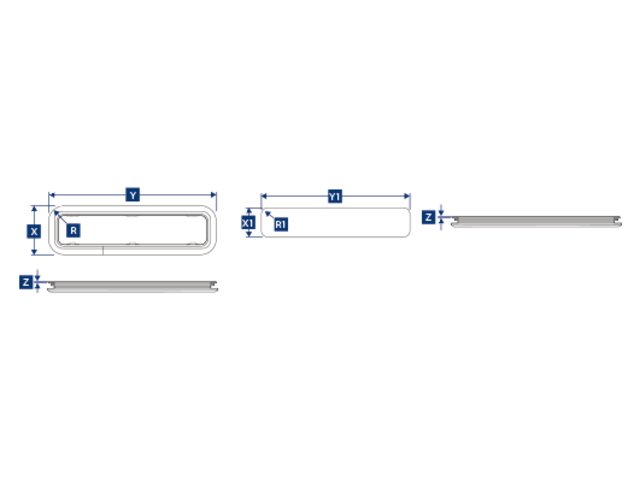

- Dimensions: X = 191 mm, Y = 646 mm, Z = 4 mm
- Radius R = 62.0 mm
- Additional dimensions: X1 = 171 mm, Y1 = 626 mm, Radius R1 = 52.0 mm
-
