SKU:
LNK 18318007
€ 650,93
1-2 weeks delivery time
-
+
The Lewmar 393320200 Standard Portlight Size 3 is a practical, stylish option for any Lewmar hatch, using a clamping installation system and white ABS trim. At 191 mm by 449 mm, it includes a flyscreen and ensures compliance with ISO marine area regulations.
- Description
- Ask a Question
-

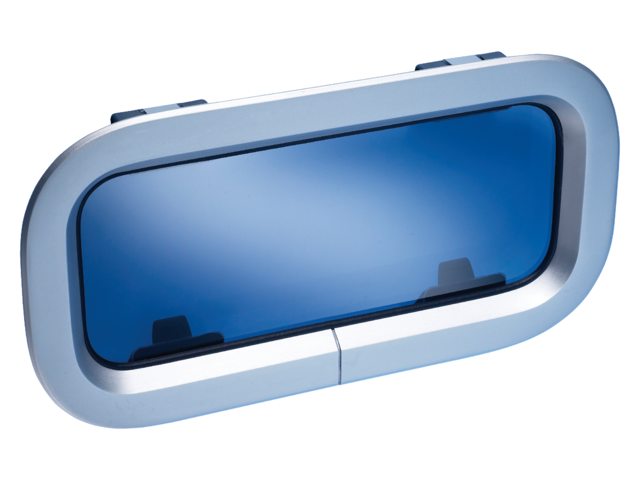

Lewmar 393320200 - Standard Portlights Opening Size: 3, X = 191 mm, Y = 449 mm
Designed to fit perfectly with any Lewmar hatch, the Standard Portlight Size 3 offers a stylish, affordable, and easy-to-install option with reliable usability.
- Fitted by clamping the cabin sides between inner and outer frames with screws fastening into the outer frame
- Installation can use sealant or closed cell PVC tape
- Trim made from white ABS plastic
- Cut-out shapes available at www.lewmar.com
- Supplied complete with flyscreen, except for sizes 4L and 4R
- French portlights comply with ISO 12216 Category A for Areas II, III, and IV
- Fixed portlights comply with ISO 12216 Category A for Areas I, II, III, and IV
- Article Number: 18318007
- Manufacturer No: 393320200
- Size: 3
- Type: Opening

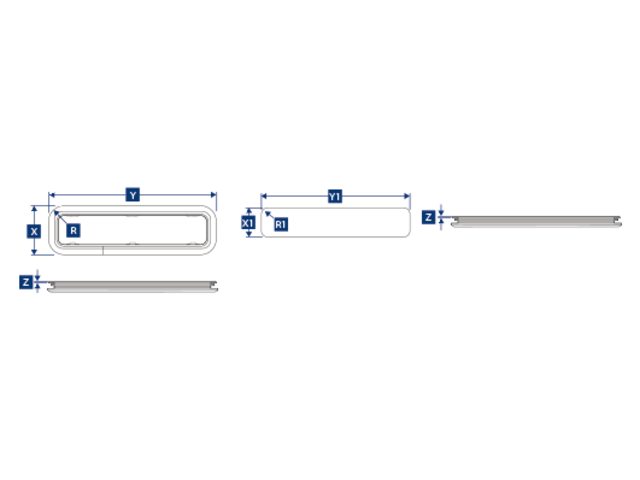

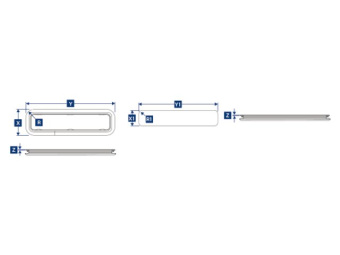

- Dimensions: X = 191 mm, Y = 449 mm, Z = 4 mm
- Radius R = 62.0 mm
- Additional dimensions: X1 = 171 mm, Y1 = 429 mm, Radius R1 = 52.0 mm
-
