SKU:
LNK 18318006
€ 520,80
1-2 weeks delivery time
-
+
The Lewmar 393220200 Standard Portlight Size 2 combines visual appeal and ease of use, designed to be installed with clamping frames and white ABS trim. Measuring 176 mm by 425 mm, it includes a flyscreen and meets marine safety standards per ISO 12216.
- Description
- Ask a Question
-

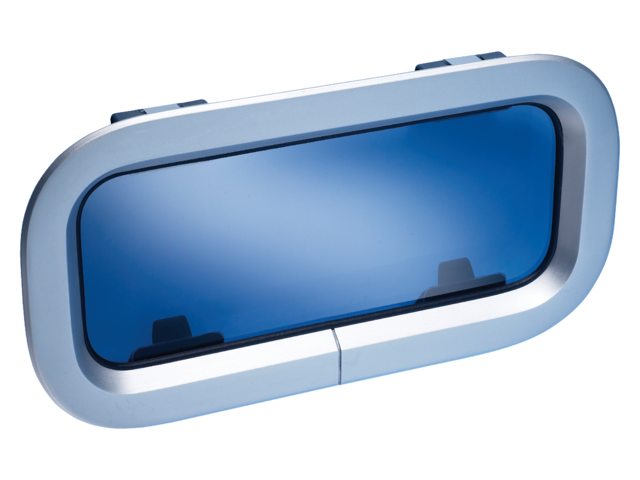

Lewmar 393220200 - Standard Portlights Opening Size: 2, X = 176 mm, Y = 425 mm
The Standard Portlight Size 2 offers an attractive, user-friendly, and competitively priced solution that fits seamlessly with any Lewmar hatch, making installation quick and straightforward.
- Installation by clamping cabin sides between inner and outer frames using screws fastened into the outer frame
- Can be mounted with sealant or closed cell PVC tape
- Trim constructed from white ABS plastic
- Cut-out templates are available at www.lewmar.com
- Includes flyscreen, except for sizes 4L and 4R
- French portlights meet ISO 12216 Category A standards for Areas II, III, and IV
- Fixed portlights comply with ISO 12216 Category A for Areas I, II, III, and IV
- Article Number: 18318006
- Manufacturer No: 393220200
- Size: 2
- Type: Opening

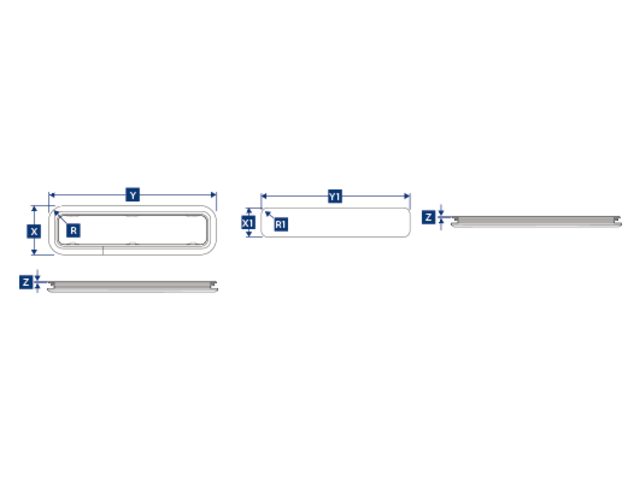

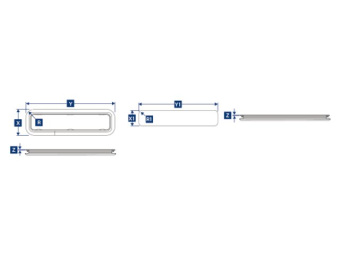

- Dimensions: X = 176 mm, Y = 425 mm, Z = 4 mm
- Radius R = 62.0 mm
- Additional dimensions: X1 = 156 mm, Y1 = 405 mm, Radius R1 = 52.0 mm
-
