SKU:
LNK 18318017
€ 481,60
1-2 weeks delivery time
-
+
The Lewmar 393210200 Standard Portlight, size 2, is a fixed model crafted for seamless integration with Lewmar hatches. It installs by clamping between frames with included screws and can be sealed with sealant or PVC tape. The unit features a white ABS plastic trim and includes a flyscreen, except for sizes 4L and 4R. It is certified to ISO 12216 Category A for marine safety across multiple zones. Dimensions are 176 mm x 425 mm, with a 62.0 mm radius.
- Description
- Ask a Question
-

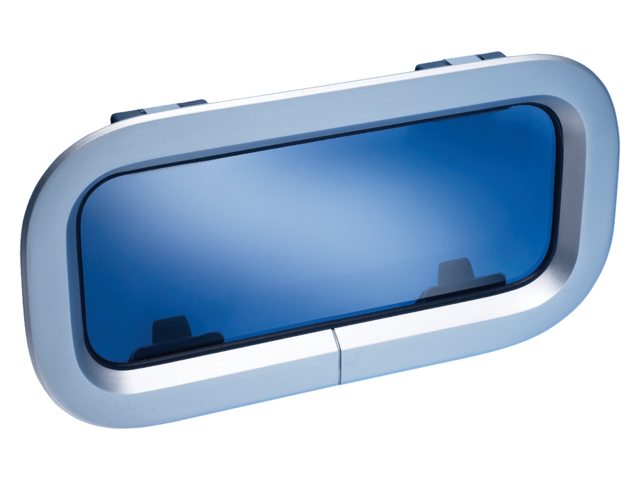

Lewmar 393210200 - Standard Portlights Fixed Size: 2
This fixed Size 2 Standard Portlight is crafted to pair effortlessly with Lewmar hatches, offering clean aesthetics, reliable performance, and simple installation.
- Mounted by clamping cabin sides between inner and outer frames with screws that fasten into the outer frame
- Compatible with both sealant and closed cell PVC tape for installation
- Finished in white ABS plastic trim
- Cut out templates available at www.lewmar.com
- Supplied with flyscreen except for sizes 4L and 4R
- Portlights (french): certified to ISO 12216 Category A, Area II, III, and IV
- Portlights fixed: certified to ISO 12216 Category A, Area I, II, III, and IV
- Article Number: 18318017
- Manufacturer No: 393210200
- Size: 2
- Type: Fixed

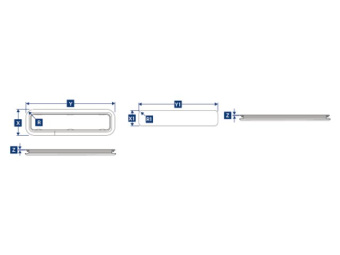

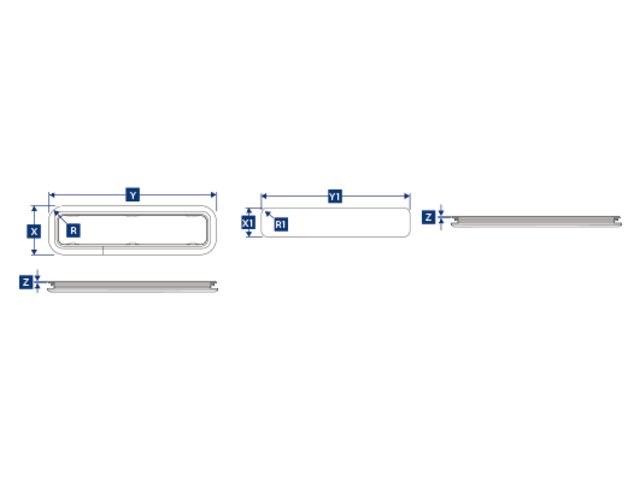

- Dimensions: X = 176 mm, Y = 425 mm, Z = 4 mm
- Radius R = 62.0 mm
- Additional dimensions: X1 = 156 mm, Y1 = 405 mm, Radius R1 = 52.0 mm
-
