SKU:
LNK 18318003
€ 423,87
1-2 weeks delivery time
-
+
The Lewmar 393120200 Standard Portlight Size 1 is a well-priced, easy-to-install portlight with white ABS trim and compatibility across Lewmar hatches. It includes a flyscreen and is ISO 12216 compliant, measuring 191 mm by 367 mm with a robust build for marine use.
- Description
- Ask a Question
-

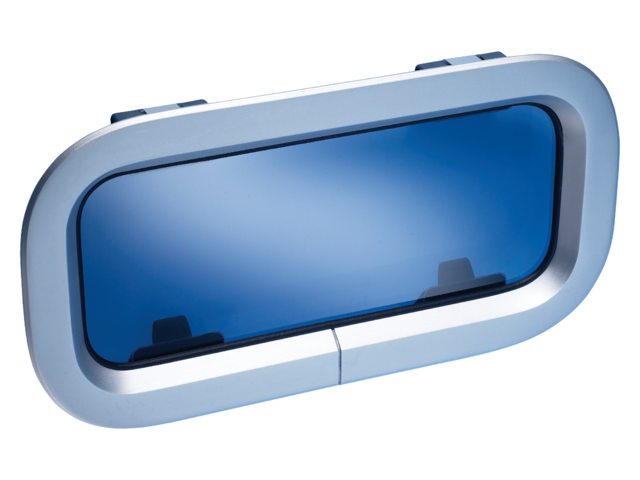

Lewmar 393120200 - Standard Portlights Opening Size: 1, X = 191 mm, Y = 367 mm
The Standard Portlight Size 1 is a stylish and competitively priced option that fits perfectly with any Lewmar hatch, offering simple installation and easy operation.
- Installed by clamping cabin sides between inner and outer frames using screws that fasten into the outer frame
- Can be mounted with sealant or closed cell PVC tape
- Trim made from white ABS plastic
- Cut-out templates available at www.lewmar.com
- Comes with flyscreen, except for sizes 4L and 4R
- French portlights conform to ISO 12216 Category A for Areas II, III, and IV
- Fixed portlights conform to ISO 12216 Category A for Areas I, II, III, and IV
- Article Number: 18318003
- Manufacturer No: 393120200
- Size: 1
- Type: Opening

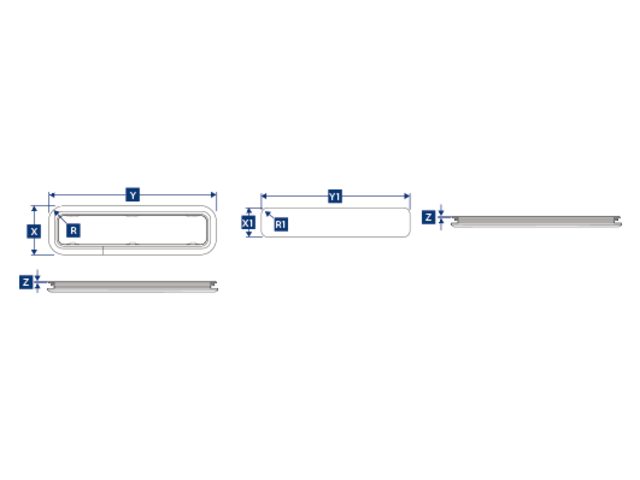

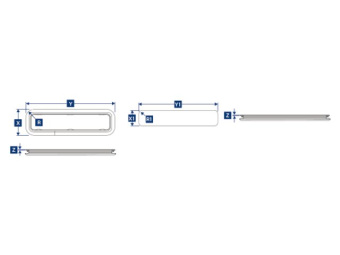

- Dimensions: X = 191 mm, Y = 367 mm, Z = 4 mm
- Radius R = 62.0 mm
- Additional dimensions: X1 = 171 mm, Y1 = 347 mm, Radius R1 = 52.0 mm
-
