SKU:
LNK 18318016
€ 392
1-2 weeks delivery time
-
+
The Lewmar 393110200 Standard Portlight, size 1, is a fixed portlight engineered to align perfectly with Lewmar hatches. Its installation method involves clamping between inner and outer frames with screws, and it can be sealed using sealant or closed cell PVC tape. The unit is finished in white ABS plastic and comes with a flyscreen, excluding sizes 4L and 4R. It adheres to ISO 12216 standards for marine use. Dimensions are 191 mm x 367 mm, with a 62.0 mm radius.
- Description
- Ask a Question
-

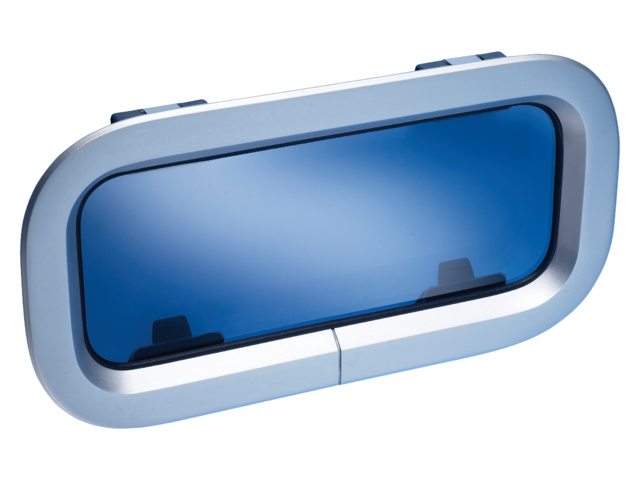

Lewmar 393110200 - Standard Portlights Fixed Size: 1
This Standard Portlight fixed size 1 fits seamlessly with Lewmar hatches, offering a stylish appearance and easy installation at a competitive price.
- Secured by clamping the cabin sides between inner and outer frame with screws fastening into the outer frame
- Installation possible with sealant or closed cell PVC tape
- White ABS plastic trim finish
- Cut out shape templates available via www.lewmar.com
- Supplied with flyscreen except for sizes 4L and 4R
- Portlights (french): compliant with ISO 12216 Category A, Area II, III, and IV
- Portlights fixed: compliant with ISO 12216 Category A, Area I, II, III, and IV
- Article Number: 18318016
- Manufacturer No: 393110200
- Size: 1
- Type: Fixed

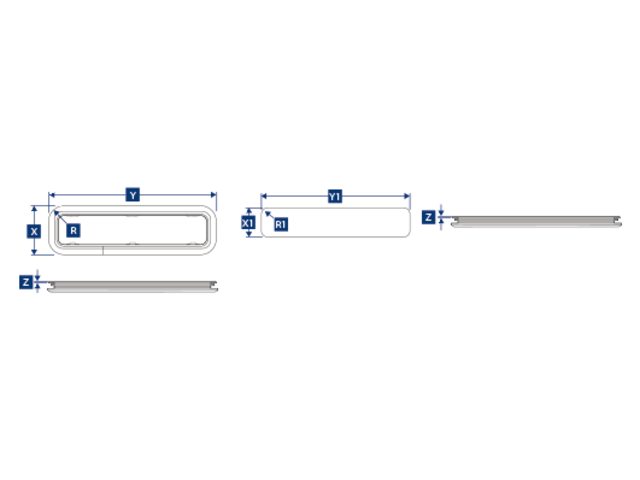

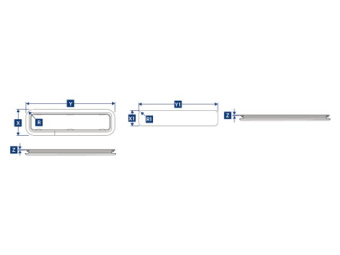

- Dimensions: X = 191 mm, Y = 367 mm, Z = 4 mm
- Radius R = 62.0 mm
- Additional dimensions: X1 = 171 mm, Y1 = 347 mm, Radius R1 = 52.0 mm
-
