SKU:
LNK 18318001
€ 395,96
1-2 weeks delivery time
-
+
The Lewmar 393020200 Standard Portlight Size 0 offers a sleek and affordable solution for ventilation, compatible with any Lewmar hatch. It uses clamping frame installation, has a white ABS trim, and includes a flyscreen. The unit measures 176 mm by 323 mm and meets ISO 12216 marine compliance standards.
- Description
- Ask a Question
-

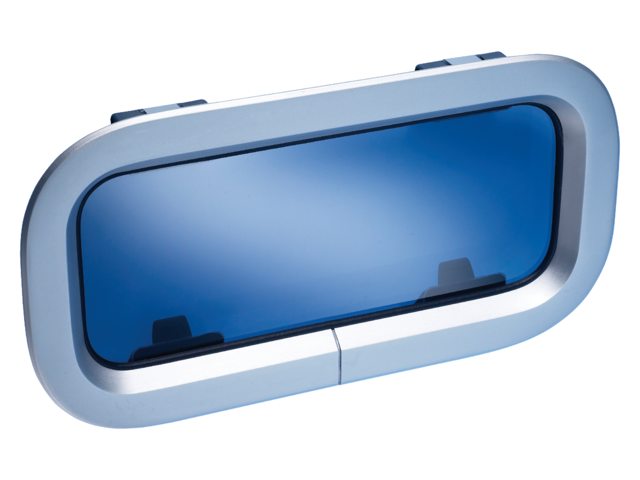

Lewmar 393020200 - Standard Portlights Opening Size: 0, X = 176 mm, Y = 323 mm
Lewmar’s Standard Portlight Size 0 is a stylish, competitively priced solution designed for easy installation and compatibility with any hatch in the Lewmar range.
- Fitted by clamping cabin sides between inner and outer frames with provided screws fastening into the outer frame
- Can be installed using sealant or closed cell PVC tape
- Features white ABS plastic trim
- Cut-out shape templates available at www.lewmar.com
- Comes with flyscreen, excluding sizes 4L and 4R
- French portlights meet ISO 12216 Category A standards for Areas II, III, and IV
- Fixed portlights meet ISO 12216 Category A standards for Areas I, II, III, and IV
- Manufacturer No: 393020200
- Size: 0
- Type: Opening

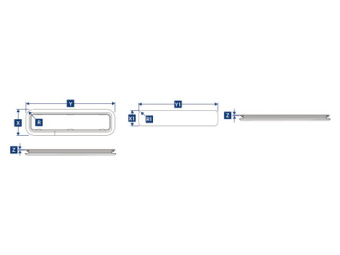

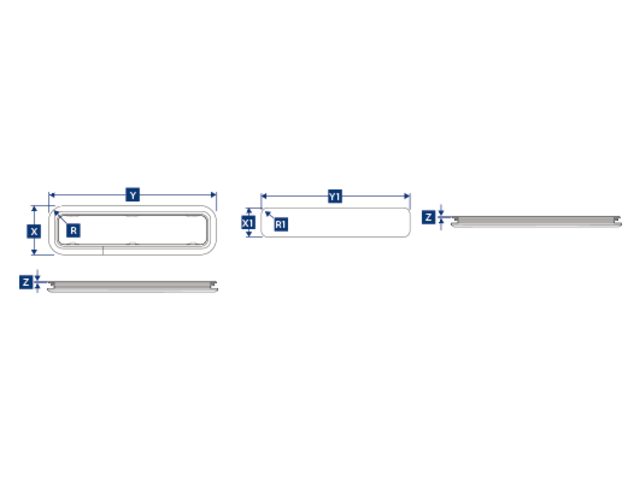

- Dimensions: X = 176 mm, Y = 323 mm, Z = 4 mm
- Radius R = 62.0 mm
- Additional dimensions: X1 = 156 mm, Y1 = 303 mm, Radius R1 = 52.0 mm
-
