The Lewmar 393010200 Standard Portlight, size 0, is a fixed model offering a stylish, cost-effective solution that matches Lewmar hatches. It is secured by clamping the cabin sides between frames using screws and allows sealing via sealant or closed cell PVC tape. The portlight is finished with a white ABS plastic trim and includes a flyscreen except for sizes 4L and 4R. It complies with ISO 12216 Category A in multiple areas. Dimensions are 176 mm x 323 mm, with a 62.0 mm radius.
- Description
- Ask a Question
-

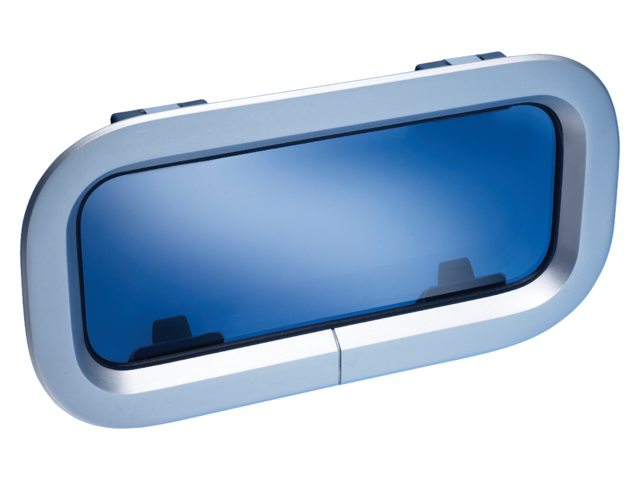

Lewmar 393010200 - Standard Portlights Fixed Size: 0
Designed to complement any Lewmar hatch, this Standard Portlight fixed model combines style, affordability, and straightforward installation.
- Fitted by clamping the cabin sides between inner and outer frames with screws fastening into the outer frame
- Installation options include sealant or closed cell PVC tape
- Finished with white ABS plastic trim
- Cut out shape templates available at www.lewmar.com
- Comes with flyscreen except for sizes 4L and 4R
- Portlights (french): compliant with ISO 12216 Category A, Area II, III, and IV
- Portlights fixed: compliant with ISO 12216 Category A, Area I, II, III, and IV
- Article Number: 18318015
- Manufacturer No: 393010200
- Size: 0
- Type: Fixed

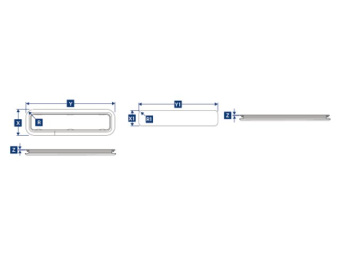

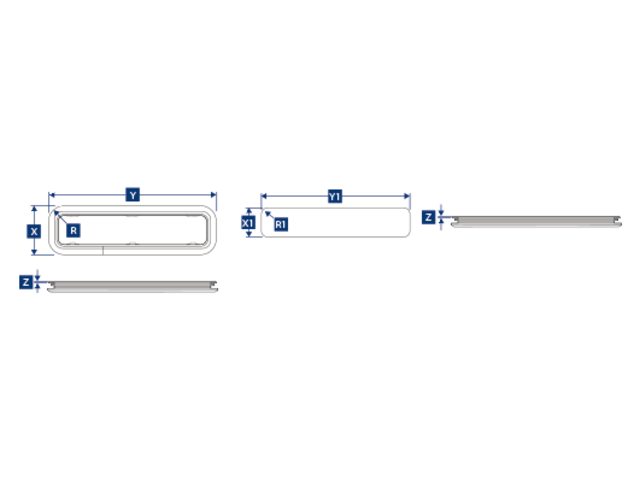

- Dimensions: X = 176 mm, Y = 323 mm, Z = 4 mm
- Radius R = 62.0 mm
- Additional dimensions: X1 = 156 mm, Y1 = 303 mm, Radius R1 = 52.0 mm
-
