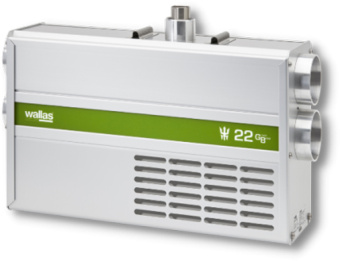

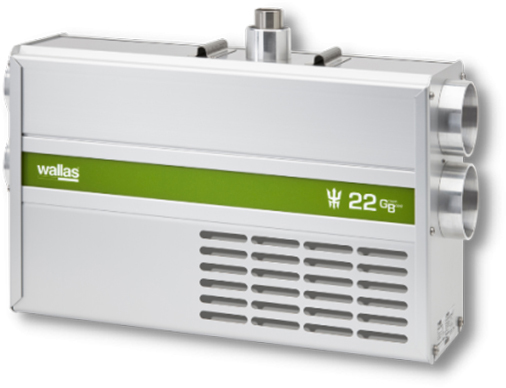

Wallas 22 GB - Diesel Heater 12V

Wallas 22 GB - Diesel Heater 12V

The Wallas 22 GB Diesel Heater is designed to provide reliable and efficient heating for a variety of mobile applications, including boats, camper vans, and trailers. This 12V heater operates on diesel and HVO renewable diesel, making it an eco-friendly option for those on the move.

• Fuel: Diesel, HVO renewable diesel
• Power Range: 1100-2500 W (3,700-8,500 BTU)
• Operating Voltage: 12 V
• Fuel Consumption: 0,10-0,25 l/h (3.4-8.5 oz/h)
• Electricity Consumption: 0,55-1,0 A
• Air Volume (min heat): 51 m³/h (30 cfm)
• Air Volume (max heat): 79 m³/h (47 cfm)
• Dimensions: 424 mm (L) x 140 mm (W) x 277 mm (H) (16 11/16″ x 5 1/2″ x 10 7/8″)
• Weight: 10 kg (22 lbs)
• Mounting: Floor or wall

Recommended Builds

• Boats: 5-7 m (16-22 ft)
• Camper Vans (retrofitted): VW T6, MB Vito
• Trailers: 4 m (13 ft)

Standard Package Content

• Heater
• PI Thermo Control Panel, wire 6 m (19 ft)
• Fuel line 4 m (13 ft)
• Power cable 4 m (13 ft) with connector and integrated fuse 15 A
• Mounting plate, feet brackets
• Accessory bag including essential clamps and screws

Additional Accessories

• 4430 Remote Control: Sold separately

Materials

• Stainless Steel
• High-Grade Aluminum
• Other Corrosion-Resistant Materials

Supplied Complete:

• Heater
• Control panel
• Mounting bracket
• 4 meter fuel hose
• Fuel filter
• 4 m power cable and main fuse with holder

To Be Ordered Separately:

• Outlet / inlet penetration
• Exhaust hose (max. 2 meters)
• Tank connection (part number 50030011)
• Heating air hose Ø 75 mm (max. 2 x 5 meters)
• Exhaust nozzles (min. 2 pieces)
• Installation kit (part number 50003712)

General Specifications

• Order Number: 56000022
• Supplier Code: 22GB
• Heating Ability: 1100 - 2500 Watt
• Voltage: 12 Volts
• Power Consumption: 0.55 - 1.0 Ah
• Minimum Heating (Air Volume): 51 m³/h
• Maximum Heating (Air Volume): 79 m³/h
• Fuel Consumption: 0.1 - 0.25 L/h
