The Ultraflex 42647S T91 Single Cable Steering Helm uses planetary gears like the T71FC and is designed for M90 Mach control cables. It suits boats up to 10.5 meters or 9 meters at speeds up to 70 km/h and offers corrosion-resistant coating, stainless steel cable ends, compact design, minimal kickback, and complies with EN 28848 safety standards.
- Description
- Ask a Question
-

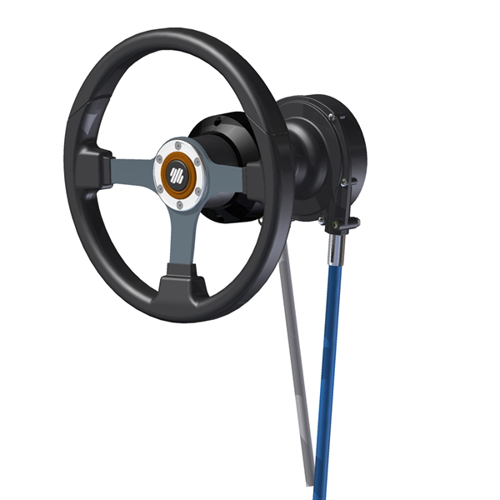

Ultraflex 42647S - T91 Single Cable Steering Helm
The ULTRAFLEX T91 and T93ZT drive units utilize planetary gears comparable to the T71FC. Designed specifically for the M90 Mach control cable, these units are suitable for boats up to approximately 10.5 meters in length with inboard or outboard motors, or boats up to 9 meters with speeds up to 70 km/h. The T93ZT model features zero play for precise control.
A full steering control setup includes the drive unit (T91 or T93ZT), a choice of cover caps (X34 90°, X35 20°, or X91 chrome 90° sold separately), M90 Mach control cables available from 7 to 20 feet, connection parts for cable linkage, and a compatible steering wheel.
- Special corrosion-resistant coating on the steering rack
- Stainless steel cable end at the engine
- All materials are corrosion-resistant
- Compact design for tight installation spaces
- Maximum steering wheel diameter: 406 mm
- Steering wheel revolutions from starboard to port: 4.2
- Tapered stem diameter: 3/4"
- Steering cable stroke: 228 mm
- Minimum cable bending radius: 200 mm
- Compliant with EN 28848 safety standards
- Minimal kickback
- Not compatible with M66 cables
- Order number: 00105891
- Supplier code: 42647S
- Barcode: 8031164426476
-
