SKU:
TN 00123042
€ 1.603,13
1-2 weeks delivery time
-
+

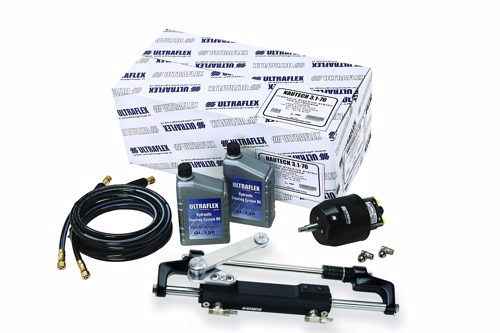

The Ultraflex 40826F - Steering Kit Nautech 3.3-00 UP25F UC128-OBF/3 is designed for outboard engines up to 300 HP, supporting safe operation below 48 knots. It features a UP25F steering pump, a balanced front mounting cylinder, hydraulic oil, and replaceable parts. The kit offers adjustable fittings and optional hose sets with couplings for flexible setup and is compatible with various engine brands.
- Description
- Ask a Question
-
Ultraflex 40826F - Steering Kit Nautech 3.3-00 UP25F UC128-OBF/3
This hydraulic steering kit is engineered for outboard engines up to 300 HP, supporting safe navigation speeds below 48 knots (around 88 km/h). It includes a reliable steering pump and a mounting cylinder, supplied with hydraulic oil for consistent and balanced steering.

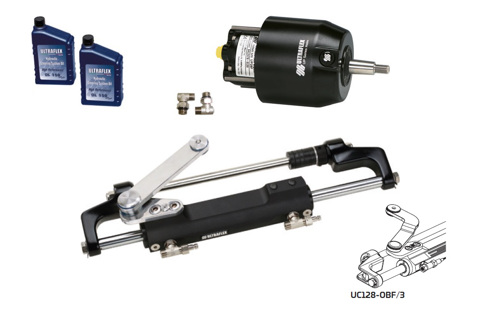

- Components: UP25F steering pump, UC128-OBF outboard motor front mounting cylinder, 2 liters OL 150 hydraulic oil (hose set KIT OB excluded)
- UP25F Steering Pump: Built-in check valve and blocking valve; 3/4" tapered stainless steel shaft; corrosion-resistant housing; half dashboard installation; 25 cc oil displacement per revolution; 5 plungers; supports steering wheels up to 710 mm; includes 90° adjustable fittings
- UC128-OBF/3 Cylinder: Balanced for equal revolutions port and starboard; lever mountable on either side; 120 cc volume; 450 kg thrust; 185 mm stroke; adjustable fittings; ULTRABOLT stainless steel bolts for durability; replaceable cylinder heads
- Compatibility: Suitable for many engine brands; check with Technautic for specific engine applications
- Optional Extras: Hose sets KIT OB available in 6, 9, or 15 meters; adapter flanges X64 square or X57 round
- Order Number: 00123042
- Supplier Code: 40826F
-
