The Ultraflex 40825D - Steering Kit Nautech 3.2-00 UP25F UC128-OBF/2 is a durable hydraulic control kit for outboard motors up to 300 HP, optimized for speeds below 48 knots. It consists of a UP25F steering pump and a front mounting cylinder with strong thrust and balanced operation. The kit includes hydraulic oil, adjustable fittings, and optional hose sets and adapter flanges for versatile installation.
- Description
- Ask a Question
-

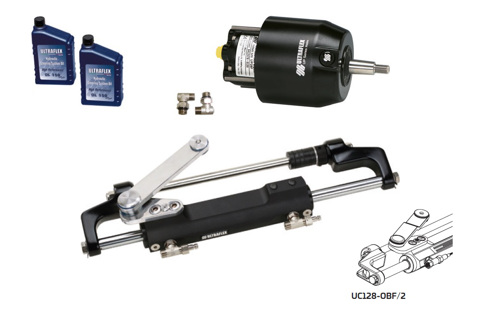

Ultraflex 40825D - Steering Kit Nautech 3.2-00 UP25F UC128-OBF/2
This hydraulic control set is crafted for outboard motors up to 300 HP, optimized for speeds under 48 knots (approximately 88 km/h). It combines a durable steering pump with a front mounting cylinder and premium hydraulic oil, ensuring balanced and efficient steering performance.
- Components: UP25F steering pump, UC128-OBF outboard motor front mounting cylinder, 2 liters OL 150 hydraulic oil (hose set KIT OB excluded)
- UP25F Steering Pump: Built-in check valve and blocking valve; 3/4" conical stainless steel shaft; corrosion-resistant housing; half dashboard integration; 25 cc oil displacement per revolution; 5 plungers; supports steering wheels up to 710 mm; includes 90° adjustable fittings
- UC128-OBF/2 Cylinder: Balanced for equal port and starboard revolutions; lever mountable on either side; 120 cc volume; 450 kg thrust; 185 mm stroke; adjustable fittings; features ULTRABOLT high-resistance stainless steel bolts; replaceable cylinder heads
- Compatibility: Fits various engine brands; contact Technautic to confirm compatibility
- Optional Extras: KIT OB hose sets with couplings of 6, 9, or 15 meters; adapter flanges X-64 square or X-57 round
- Order Number: 00123041
- Supplier Code: 40825D
- Barcode: 8031164408250
-
