Ultraflex 40824B - Steering Kit Nautech 3.1-00 UP25F UC128- OBF/1

SKU: TN 00123040

€ 1.562,19

1-2 weeks delivery time

- +

Add to cart

The Ultraflex 40824B - Steering Kit Nautech 3.1-00 UP25F UC128-OBF/1 is a hydraulic steering system for outboard motors up to 300 HP, designed for speeds under 48 knots. It includes a powerful UP25F steering pump and a front mounting cylinder with high thrust and volume, supplied with hydraulic oil. The kit supports large steering wheels, features replaceable parts, and offers optional hose sets and adapter flanges.

Description
Ask a Question

Ultraflex 40824B - Steering Kit Nautech 3.1-00 UP25F UC128-OBF/1

This hydraulic steering kit is designed for outboard motors up to 300 HP, delivering reliable control without exceeding speeds of 48 knots (about 88 km/h). It includes a powerful steering pump and a front mounting cylinder, paired with quality hydraulic oil to ensure smooth operation.

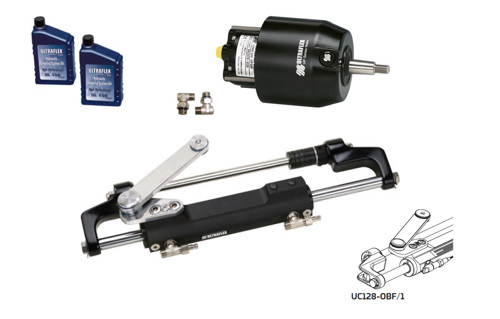

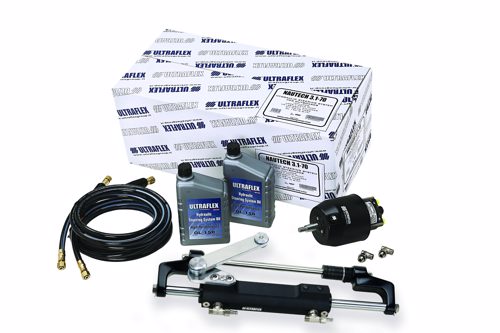

- Components: UP25F steering pump, UC128-OBF outboard motor front mounting cylinder, 2 liters OL 150 hydraulic oil (hose set KIT OB excluded)
- UP25F Steering Pump: Built-in check valve and blocking valve, 3/4" tapered stainless steel shaft, corrosion-resistant housing; half-mounted in the dashboard; 25 cc oil displacement per revolution; 5 plungers; supports steering wheels up to 710 mm; includes 90° adjustable fittings
- UC128-OBF/1 Cylinder: Balanced for equal port and starboard revolutions; mountable on either side by lever; 120 cc volume; 450 kg thrust; 185 mm stroke; adjustable fittings; equipped with high-resistance ULTRABOLT stainless steel bolts; replaceable cylinder heads
- Compatibility: Suitable for various engine brands; consult Technautic for specific engine fitment
- Optional Extras: Hose sets KIT OB available in 6, 9, or 15 meters; adapter flanges X64 square or X57 round
- Order Number: 00123040
- Supplier Code: 40824B
