SKU:
TN 00108872
€ 442,45
1-2 weeks delivery time
-
+
The Ultraflex 38868K Fast Connect Steering Helm T72 FC is a twin cable system with a planetary gear setup for balanced torque, suitable for boats up to 10.5 meters, made with corrosion-resistant materials and offering mounting options at 90° or 20°.
- Description
- Ask a Question
-

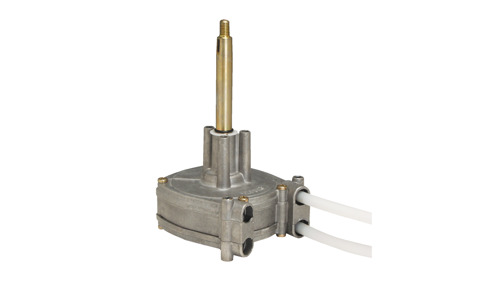

Ultraflex 38868K - Fast Connect Steering Helm- Twin Cable T72 FC
This twin cable helm uses the same advanced planetary gear system for balanced torque distribution and enhanced durability. It is suitable for boats up to about 10.5 meters with inboard or outboard motors rated up to 173 kW (235 hp). The steering system choice also depends on vessel speed, hull shape, and displacement.
- Drive unit T72FC for two control cables
- Black cover cap with optional 90° or 20° mounting (ordered separately)
- Two control cables type M66, available in lengths from 8 to 20 feet, increasing per foot (0.305 m)
- Connection parts for cable linkage to rudder arm or outboard motor
- Steering wheels compatible with this system
- Stainless steel cable ends
- All materials corrosion-resistant
- Compact design suitable for limited space installations
- Mounting options at 90° or 20°
- Steering wheel turns from starboard to port: 3.8 revolutions
- Cable stroke length: 230 mm
- Minimum cable bending radius: 200 mm
- Maximum steering wheel diameter: 406 mm
- Complies with EN 28848 safety standards
- Reduced or no recoil during use
- Order number: 00108872
- Supplier code: 38868K
- Barcode: 8031164388682
-
