SKU:
TN 00108871
€ 180,29
1-2 weeks delivery time
-
+
The Ultraflex 38867H Single Cable Steering Helm T71 FC uses a planetary gear system for balanced torque and less wear, suitable for boats up to 10.5 meters with engines up to 173 kW, featuring corrosion-resistant parts and multiple mounting options.
- Description
- Ask a Question
-

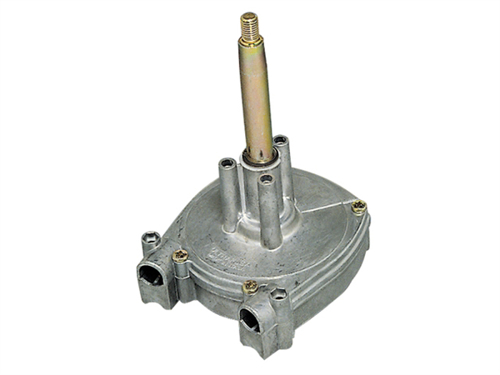

Ultraflex 38867H - Single Cable Steering Helm T71 FC
This model uses a planetary gear system for balanced motor torque distribution, resulting in less wear and longer service life. It suits vessels up to approximately 10.5 meters powered by inboard engines or outboard motors up to 173 kW (235 hp). The boat’s design and water displacement also influence steering system selection.

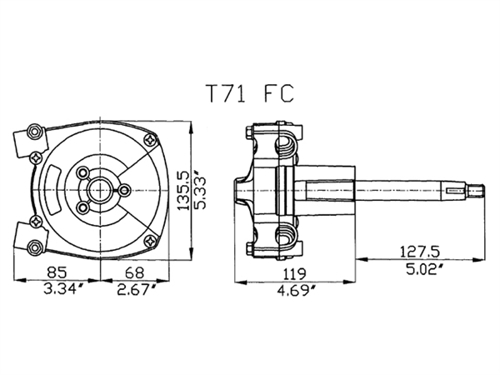

- Drive unit T71FC with black cover cap
- Optional mounting angles: 90° or 20° (cover cap ordered separately)

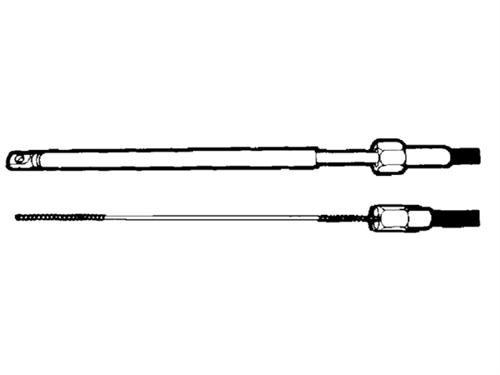

- Control cable type M66 available from 8 to 20 feet, increasing per foot (0.305 m)
- Connection parts for rudder or motor cable linkage

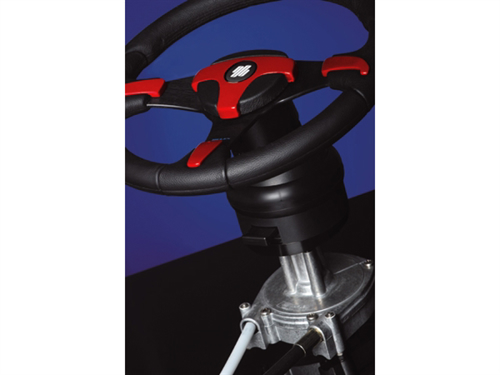

- Compatible steering wheels
- Stainless steel cable ends
- Fully corrosion-resistant materials
- Compact design suitable for tight installation spaces
- Mounting options at 90° or 20°
- Steering wheel revolutions from starboard to port: 3.8
- Steering cable stroke: 230 mm
- Minimum cable bending radius: 200 mm
- Maximum steering wheel diameter: 406 mm
- Complies with EN 28848 safety standards
- Minimal recoil during operation
- Order number: 00108871
- Supplier code: 38867H
- Barcode: 8031164388675
-
