The Ultraflex 38439Z Drive Unit T85 fits boats up to 10.5 meters with engines up to 173 kW, supports M66 control cables, has corrosion-resistant construction, and allows horizontal mounting with minimal recoil and a steering wheel stroke of 230 mm.
- Description
- Ask a Question
-

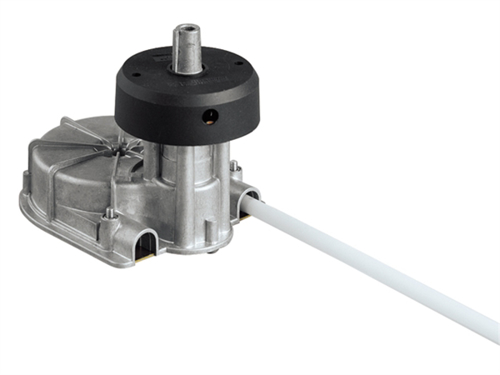

Ultraflex 38439Z - Drive Unit T85
This drive unit fits boats up to roughly 10.5 meters with engines up to 173 kW (235 hp). It supports M66 or stainless steel M66 SS control cables and offers a robust corrosion-resistant build. Installation is designed for horizontal mounting with a black cover cap included.
- Drive unit T85 with black cover

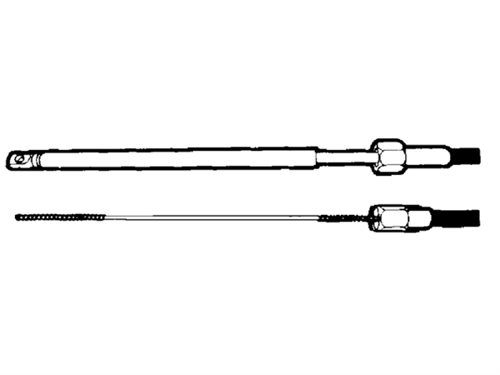

- Control cables type M66 or M66 SS, lengths from 8 to 20 feet, increasing per foot (0.305 m)
- Connection parts for attaching the control cable to rudder arm or outboard motor
- Compatible steering wheels available
- Stainless steel cable ends; M66 SS cables feature stainless steel spiral inner cable as well
- Complete corrosion resistance of all materials
- Ideal for compact installations
- Horizontal mounting at 90° including black cover cap
- Minimal to no recoil
- Steering wheel turns from starboard to port: 3 revolutions
- Steering cable stroke: 230 mm
- Minimum cable bending radius: 200 mm
- Maximum steering wheel diameter: 406 mm
- Conforms with EN 28848 safety standards
- Order number: 00105885
- Supplier code: 38439Z
- Barcode: 8031164384394
-
