The Ultraflex 35809J Steering Helm with Friction and Black Bezel T67 is designed for boats up to 9 meters with outboard motors up to 30 kW, featuring stainless steel cable ends, adjustable friction, and corrosion-resistant materials with a steering wheel stroke of 230 mm.
- Description
- Ask a Question
-

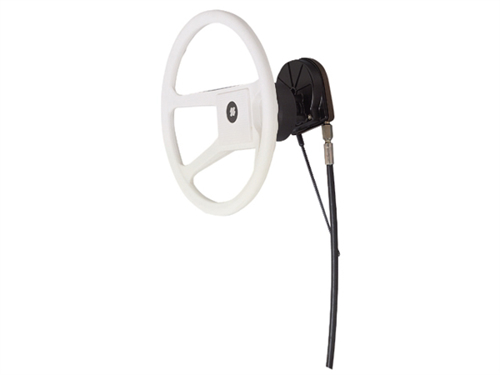

Ultraflex 35809J - Steering Helm With Friction and Black Bezel T67
This steering helm system is designed for boats up to about 9 meters in length with outboard motors up to 30 kW (40 hp). Its suitability depends also on the vessel's speed, shape, and water displacement. Expert advice from Technautic is recommended if uncertain about the proper steering system choice.

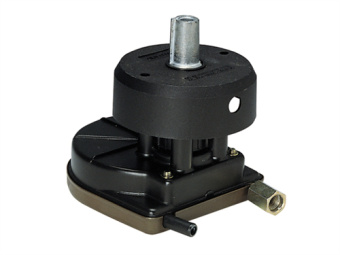

- Drive unit T67 featuring a black cover

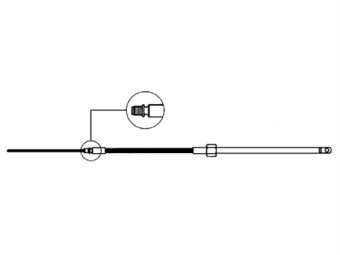

- Control cable type M58 available in lengths from 8 to 20 feet, increasing per foot (0.305 m)
- Connection parts to link the steering cable to rudder arm or outboard motor
- Compatible steering wheels available
- Cable ends made of stainless steel
- Fully corrosion-resistant materials
- Adjustable friction feature
- Horizontal mounting at 90° with 4 possible positions
- Steering wheel turns from starboard to port: 2.5 revolutions
- Steering cable stroke of 230 mm
- Minimum cable bending radius: 200 mm
- Maximum steering wheel diameter: 380 mm
- Meets EN 29775 safety standards
- Order number: 00102867
- Supplier code: 35809J
- Barcode: 8031164358098
-
