SKU:
TN 00135222
€ 57,50
1-2 weeks delivery time
-
+
The Uflex 65302J gas spring functions like a pneumatic muscle with a 50 kg push force, 683 mm total length, and 300 mm stroke. It typically has an 8 mm rod diameter and is best mounted at 30° with the piston rod aimed at the pivot point to improve damping during large openings.
- Description
- Ask a Question
-

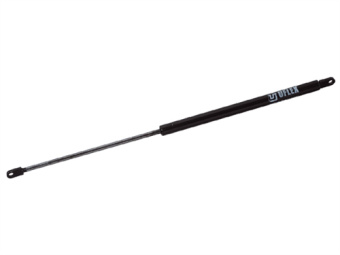

Uflex 65302J - Black Gas Spring, L=683 mm / S=300 mm / 50 kg
The Uflex 65302J gas spring acts like a pneumatic muscle, mainly used to open and hold doors or hatches in place. It works by using compressed nitrogen gas inside a tube, which creates an extension force due to pressure differences between the tube and the atmosphere. A self-cleaning valve inside the piston rod allows the gas to move and push the rod out. The tube contains a small amount of oil for lubrication and to smooth the motion.
- Optimal mounting angle is 30° to the vertical, with the piston rod directed toward the pivot point for best damping.
- For installations with large opening angles, align the piston rod toward the pivot point to improve movement damping beyond horizontal.

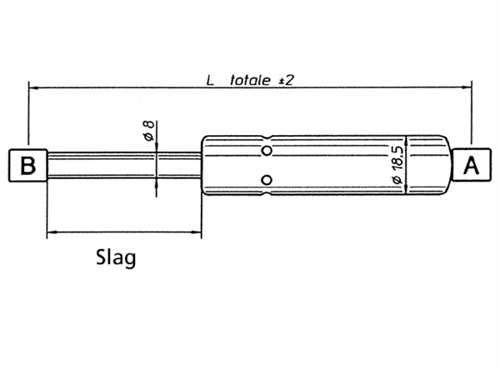

- Total length is measured between the centers of the end fittings when fully extended.
- Rod diameter is generally 8 mm, except for part numbers 00135220, 00135221, and 00135222, which have 10 mm rods.

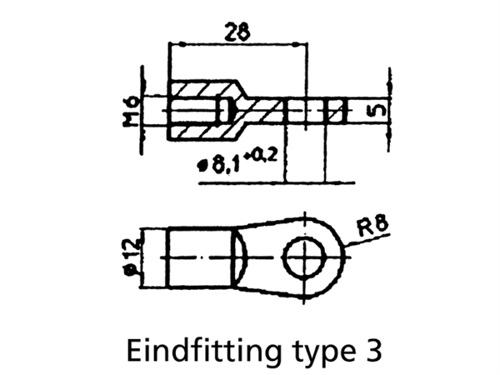

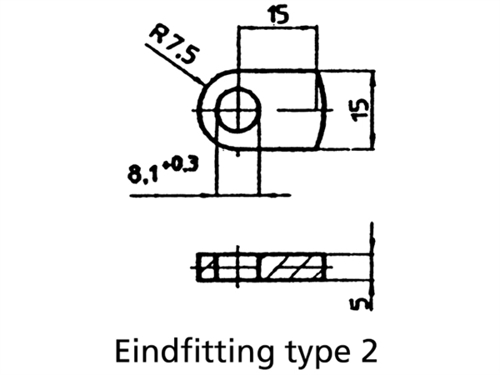

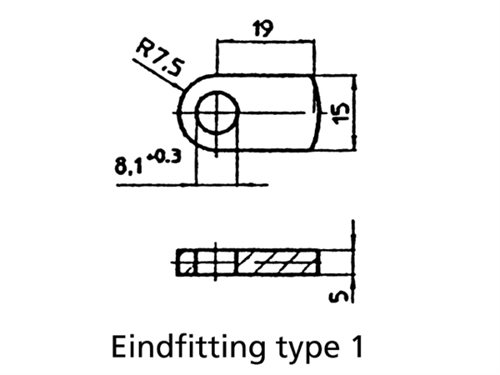

- End fittings sequence for installation: 1, 2, 3 (see images).
- Order number: 00135222
- Supplier code: 65302J
- Barcode: 65302J
- Push force: 50 kg
- Total length: 683 mm
- Stroke length: 300 mm
- End fitting A: 2
- End fitting B: 2
-
