SKU:
TN 00135221
€ 57,50
1-2 weeks delivery time
-
+
The Uflex 65301G black gas spring uses compressed nitrogen gas to extend the piston rod, providing a push force of 40 kg. It features a total length of 683 mm, a stroke of 300 mm, and a 10 mm rod diameter, designed for optimal damping when mounted at a 30° angle with the piston rod toward the pivot.
- Description
- Ask a Question
-

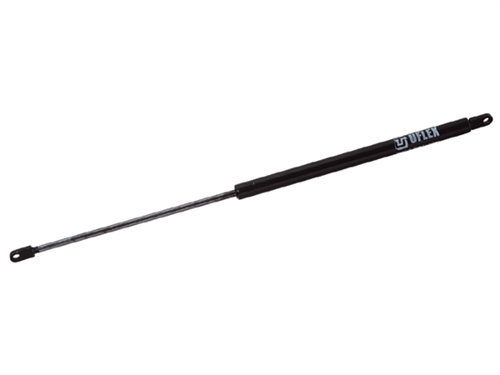

Uflex 65301G - Black Gas Spring, L=683 mm / S=300 mm / 40 kg
This gas spring produces extension force through compressed nitrogen gas pressure difference inside its tube, moving the piston rod outward via a self-cleaning valve. It contains oil for lubrication and damping, useful for holding doors and hatches open.
- Order number: 00135221
- Supplier code: 65301G
- Barcode: 65301G
- Push force: 40 kg

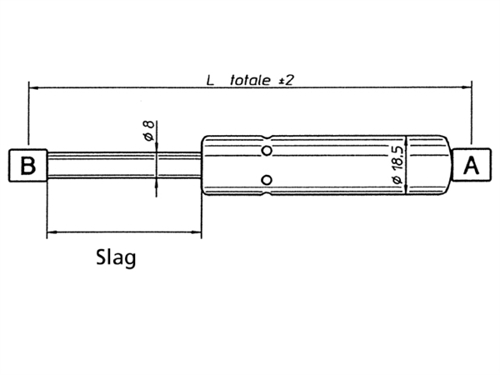

- Total length: 683 mm (measured center-to-center of end fittings fully extended)
- Stroke: 300 mm

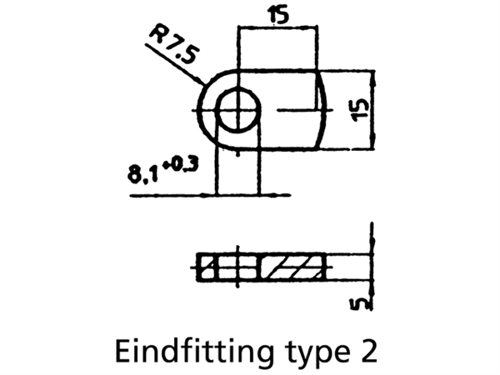

- End fitting A: 2
- Final fitting B: 2
- Rod diameter: 10 mm (used for part numbers 00135220, 00135221, 00135222)
- Mounting: For optimal damping, mount at 30° to vertical with piston rod toward pivot point. For large opening angles, direct piston rod to pivot for improved damping past horizontal plane.

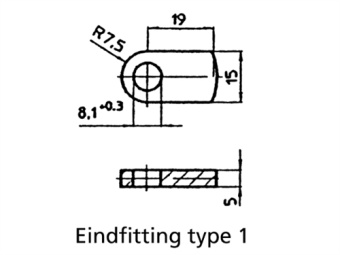

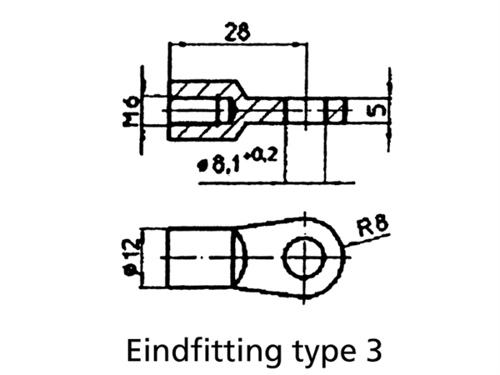

- Final fitting sequence: 1, 2, 3 (refer images)
-
