Uflex 65300E is a 30 kg gas spring with a length of 683 mm and stroke of 300 mm, featuring a larger 10 mm rod diameter, designed for opening and holding doors, with mounting instructions for optimal damping at 30°.
- Description
- Ask a Question
-

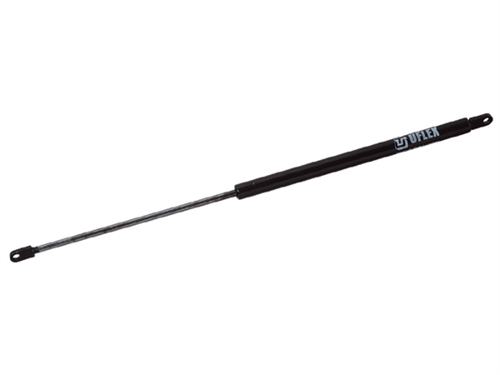

Uflex 65300E - Black Gas Spring, L=683 mm / S=300 mm / 30 kg
Operating by nitrogen gas pressure difference inside a tube, this gas spring extends the piston rod via a self-cleaning valve. Oil inside provides lubrication and damping, designed for opening and holding doors and hatches.
- Order number: 00135220
- Supplier code: 65300E
- Barcode: 65300E
- Push force: 30 kg
- Total length: 683 mm (measured center-to-center of end fittings fully extended)
- Stroke: 300 mm

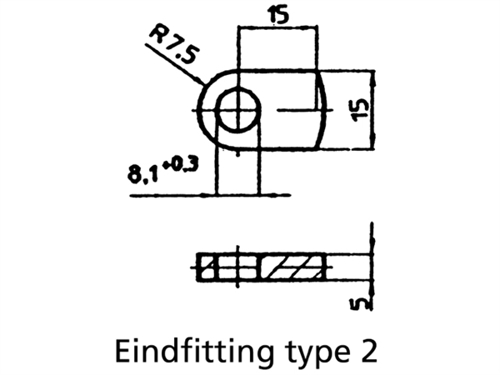

- End fitting A: 2
- Final fitting B: 2
- Rod diameter: 10 mm (special rod size for part numbers 00135220, 00135221, 00135222)
- Mounting: Best damping when installed at 30° to vertical with piston rod facing pivot. For wider opening angles, point piston rod to pivot for improved damping beyond horizontal.

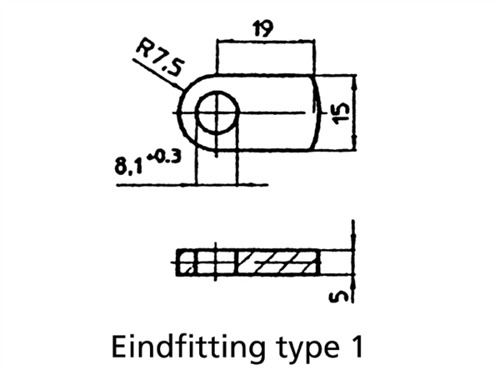

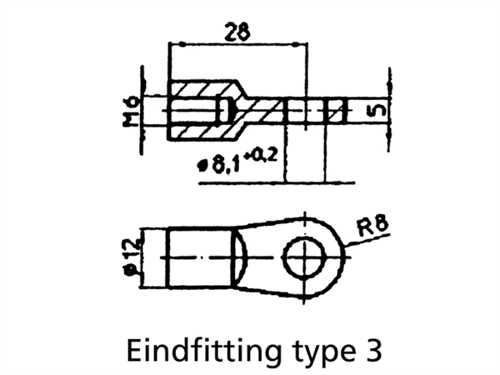

- Final fitting sequence: 1, 2, 3 (shown in images)
-
