SKU:
TN 00135112
€ 45,16
1-2 weeks delivery time
-
+
Uflex 64424U is a 40 kg gas spring measuring 600 mm in length and 262 mm stroke, using compressed nitrogen gas and oil for extension and damping, recommended to be mounted at a 30° angle.
- Description
- Ask a Question
-

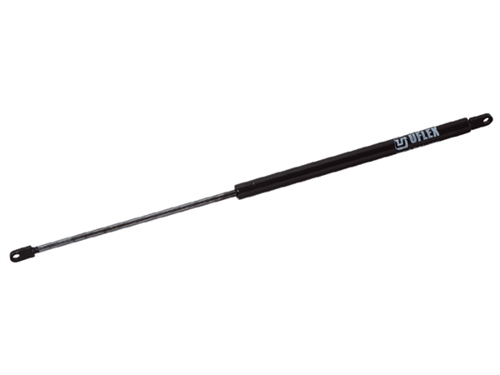

Uflex 64424U - Black Gas Spring, L=600 mm / S=262 mm / 40 kg
This gas spring uses compressed nitrogen gas to generate extension force by pressure difference inside a tube, pushing the piston rod through a self-cleaning valve. The tube contains oil for lubrication and damping, ideal for supporting doors and hatches in an open position.
- Order number: 00135112
- Supplier code: 64424U
- Barcode: 64424U
- Push force: 40 kg

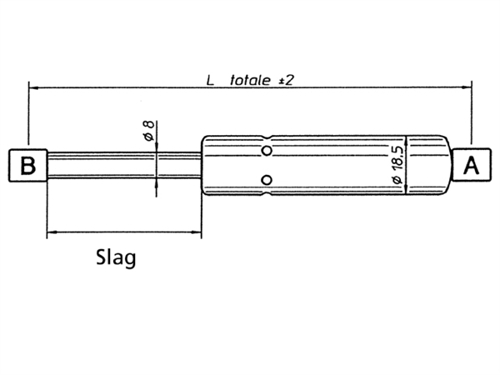

- Total length: 600 mm (measured between centers of end fittings fully extended)
- Stroke: 262 mm

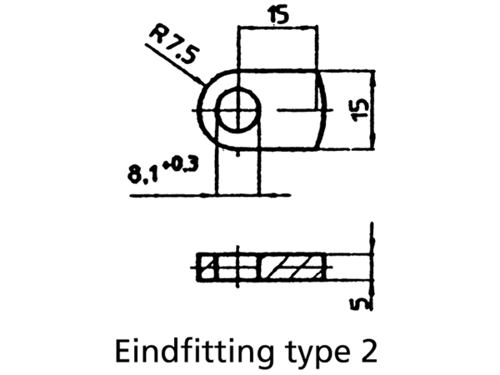

- End fitting A: 2

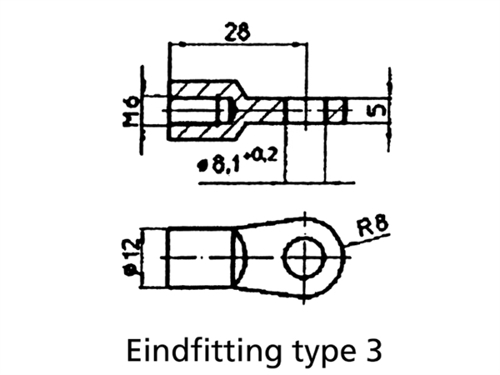

- Final fitting B: 3
- Rod diameter: 8 mm except for part numbers 00135220, 00135221, and 00135222 where it is 10 mm
- Mounting: Optimal damping is achieved when mounted at 30° to the vertical plane with piston rod directed towards pivot point. For large opening angles, mounting the piston rod towards the pivot point enhances damping after passing horizontal plane.

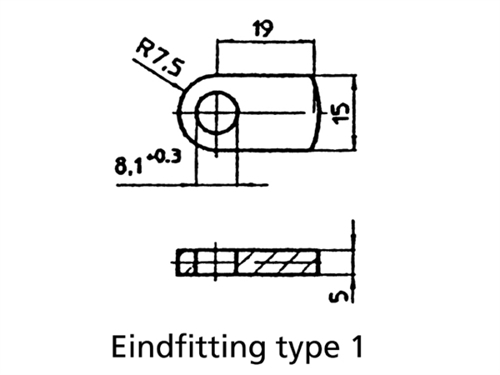

- Final fitting sequence: 1, 2, 3 (refer to images)
-
