SKU:
TN 00135111
€ 45,16
1-2 weeks delivery time
-
+
Uflex 64423S offers a 30 kg push force with the same dimensions as the 64422P model, suitable for holding doors open, with optimal damping achieved by mounting at a 30° vertical angle.
- Description
- Ask a Question
-

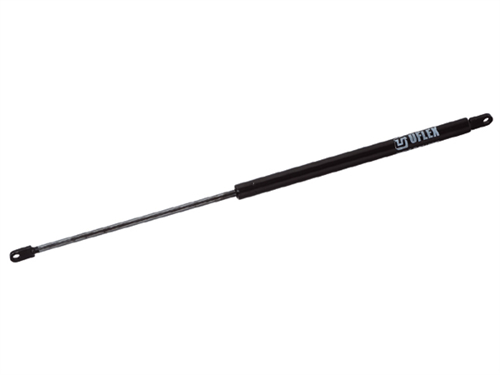

Uflex 64423S - Black Gas Spring, L=600 mm / S=262 mm / 30 kg
This gas spring produces extension force by compressed nitrogen gas pressure inside its tube, moving the piston rod out through a self-cleaning valve. It contains oil for lubrication and damping, suited for opening and holding open doors and hatches.
- Order number: 00135111
- Supplier code: 64423S
- Barcode: 64423S
- Push force: 30 kg

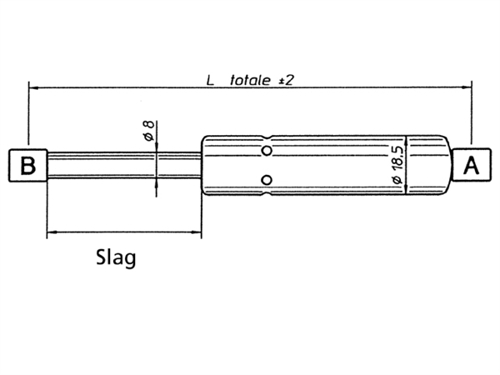

- Total length: 600 mm (measured center-to-center of end fittings fully extended)
- Stroke: 262 mm

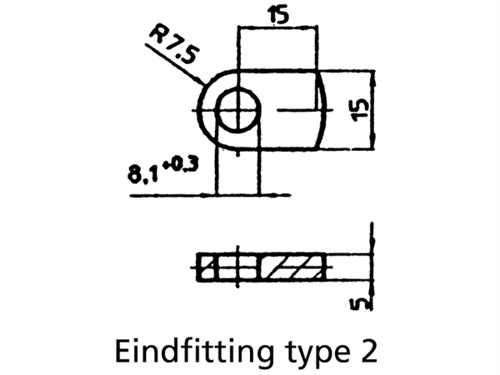

- End fitting A: 2

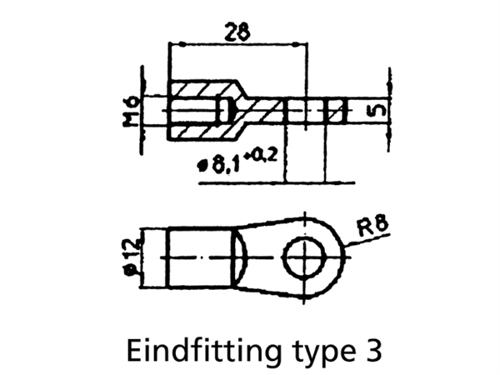

- Final fitting B: 3
- Rod diameter: 8 mm for most part numbers; 10 mm for 00135220, 00135221, and 00135222
- Mounting: Mount at 30° to vertical with piston rod toward pivot point for optimal damping. For wide opening angles, aim piston rod toward pivot point to enhance damping after horizontal position.

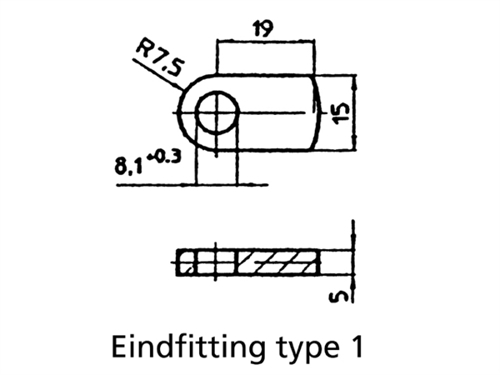

- Final fitting sequence: 1, 2, 3 (see images)
-
