SKU:
TN 00135110
€ 45,16
1-2 weeks delivery time
-
+
Uflex 64422P is a 20 kg gas spring with a 600 mm length and 262 mm stroke, designed for door and hatch support, featuring mounting recommendations to optimize damping at a 30° angle.
- Description
- Ask a Question
-

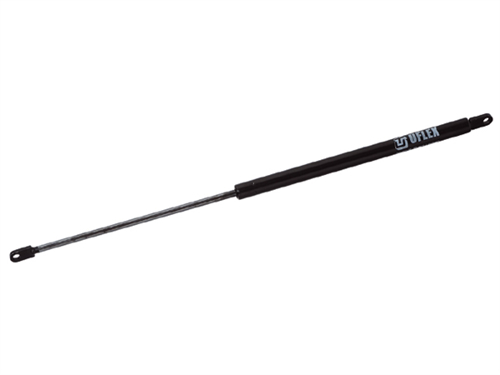

Uflex 64422P - Black Gas Spring, L=600 mm / S=262 mm / 20 kg
This gas spring operates by the pressure difference of compressed nitrogen gas inside its tube, pushing the piston rod through a self-cleaning valve. The internal oil provides lubrication and damping. It is widely used for opening and supporting doors and hatches.
- Order number: 00135110
- Supplier code: 64422P
- Barcode: 64422P
- Push force: 20 kg

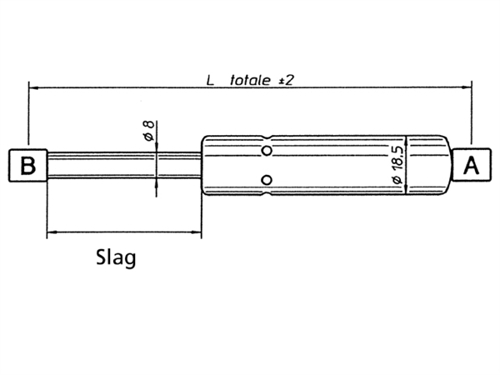

- Total length: 600 mm (measured center-to-center of end fittings fully opened)
- Stroke: 262 mm

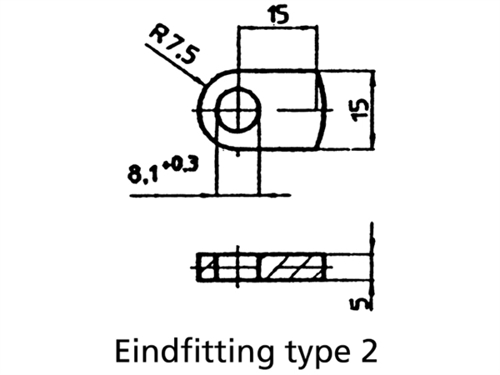

- End fitting A: 2

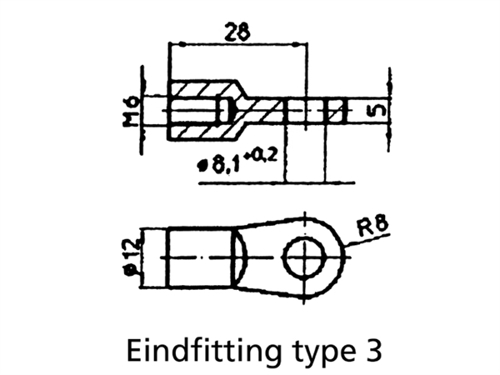

- Final fitting B: 3
- Rod diameter: 8 mm for most part numbers; 10 mm for 00135220, 00135221, and 00135222
- Mounting: Optimal damping is achieved when mounted at 30° to vertical with piston rod directed to pivot point. For large opening angles, point piston rod toward pivot for improved damping past horizontal plane.

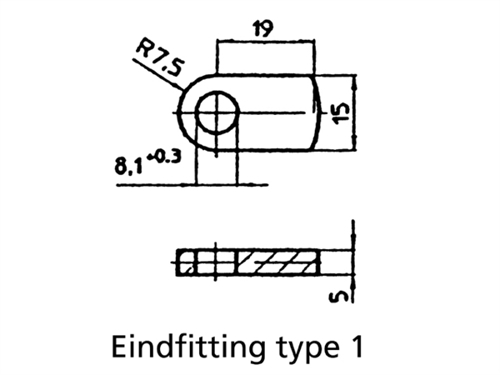

- Final fitting sequence: 1, 2, 3 (as shown in images)
-
