SKU:
TN 00135109
€ 42,10
1-2 weeks delivery time
-
+
Uflex 64421M provides a 40 kg push force with the same size as the 64420K model, using compressed nitrogen gas and oil for damping and lubrication, best mounted at 30° with piston rod facing the pivot.
- Description
- Ask a Question
-

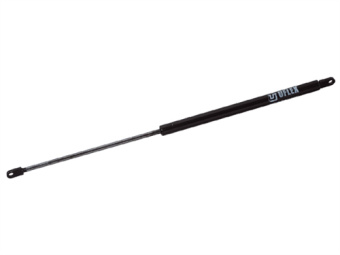

Uflex 64421M - Black Gas Spring, L=550 mm / S=234 mm / 40 kg
This gas spring uses compressed nitrogen gas inside a tube to create extension force by pressure difference, pushing the piston rod outward through a self-cleaning valve. It is designed for opening and holding doors and hatches, with oil inside the tube for lubrication and damping.
- Order number: 00135109
- Supplier code: 64421M
- Barcode: 64421M
- Push force: 40 kg

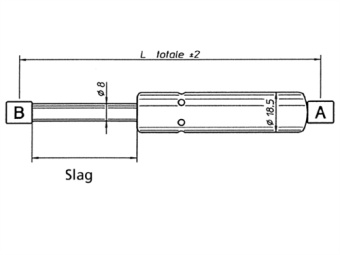

- Total length: 550 mm (measured center-to-center of both end fittings fully extended)
- Stroke: 234 mm

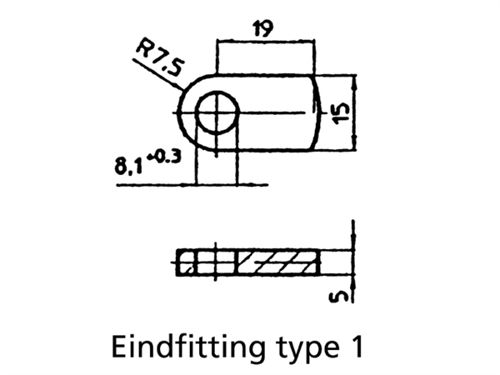

- End fitting A: 1
- Final fitting B: 1
- Rod diameter: 8 mm for most part numbers; 10 mm for 00135220, 00135221, and 00135222
- Mounting: For optimal damping, mount at 30° to vertical with piston rod toward pivot point. With large opening angles, direct the piston rod toward the pivot point to improve damping after passing horizontal plane.

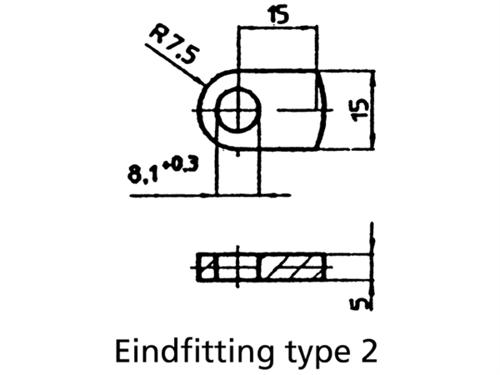

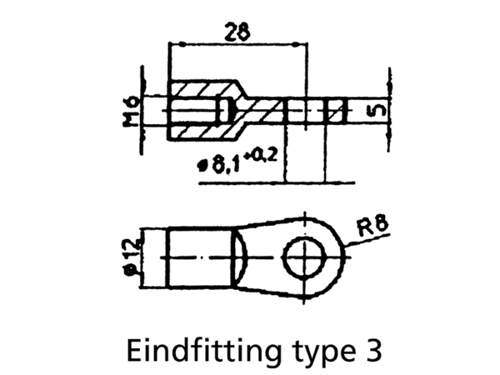

- Final fitting sequence: 1, 2, 3 (refer to images)
-
