SKU:
TN 00135107
€ 42,10
1-2 weeks delivery time
-
+
Uflex 64419B is a 20 kg gas spring with the same dimensions as the 64418Z model, designed for opening and holding doors or hatches, with optimal damping when mounted at a 30° vertical angle.
- Description
- Ask a Question
-

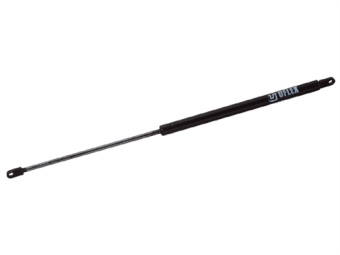

Uflex 64419B - Black Gas Spring, L=550 mm / S=234 mm / 20 kg
This gas spring operates using compressed nitrogen gas inside the tube to generate extension force by the pressure difference between the tube and atmosphere. The gas passes through a self-cleaning valve inside the piston rod, pushing it out. The tube contains oil for lubrication and damping, and the product is mainly used to open and hold open doors and hatches.
- Order number: 00135107
- Supplier code: 64419B
- Barcode: 64419B
- Push force: 20 kg

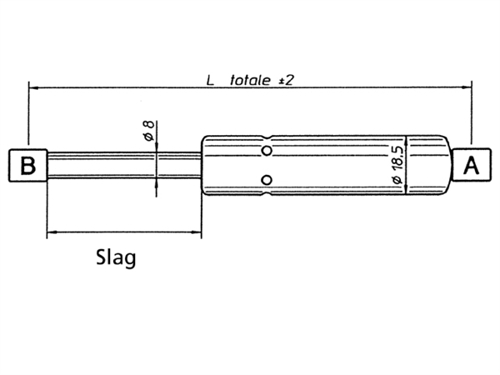

- Total length: 550 mm (measured between centers of end fittings in fully opened state)
- Stroke: 234 mm
- End fitting A: 1
- Final fitting B: 1
- Rod diameter: 8 mm except for part numbers 00135220, 00135221, and 00135222, which have 10 mm rods
- Mounting: Best damping occurs when mounted at 30° to vertical with piston rod aimed toward the pivot point. For large opening angles, orient the piston rod toward the pivot point to improve damping after passing the horizontal plane.

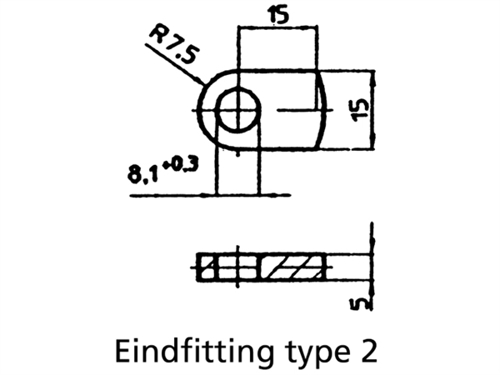

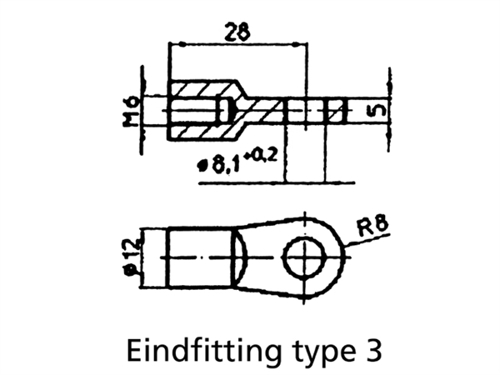

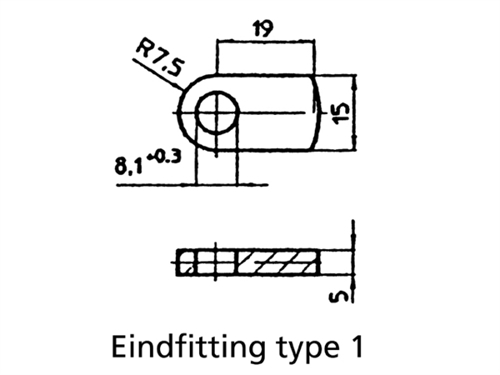

- Final fitting sequence: 1, 2, 3 (shown in images)
-
