SKU:
TN 00135106
€ 42,10
1-2 weeks delivery time
-
+
Uflex 64418Z is a 10 kg gas spring measuring 550 mm in length and 234 mm stroke, using nitrogen gas pressure difference and oil for lubrication and damping, best mounted at a 30° angle for effective damping.
- Description
- Ask a Question
-

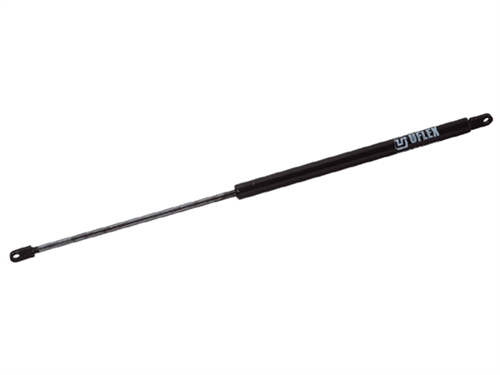

Uflex 64418Z - Black Gas Spring, L=550 mm / S=234 mm / 10 kg
This gas spring functions as a pneumatic muscle bundle commonly used to open and hold open doors and hatches. It relies on the pressure of compressed nitrogen gas stored inside the tube, which provides the extension force due to the pressure difference between the tube and the atmosphere. The gas moves from the higher pressure compartment to the lower through a self-cleaning valve in the piston rod, pushing the rod outward. The tube contains a small amount of oil for lubrication and damping.
- Order number: 00135106
- Supplier code: 64418Z
- Barcode: 64418Z
- Push force: 10 kg

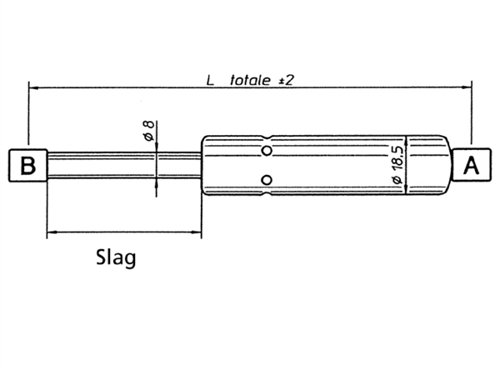

- Total length: 550 mm (measured between the centers of both end fittings in the fully opened state)
- Stroke: 234 mm
- End fitting A: 1
- Final fitting B: 1
- Rod diameter: 8 mm for all part numbers except 00135220, 00135221, and 00135222, which have a 10 mm rod diameter
- Mounting: Optimal damping is achieved by mounting the gas spring at a 30° angle to the vertical plane, with the piston rod directed toward the pivot point. For installations with large opening angles, it is better to orient the piston rod in the direction of the pivot point to be opened, which improves damping after passing the horizontal plane.

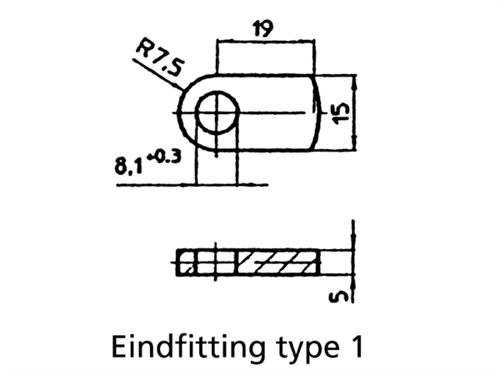

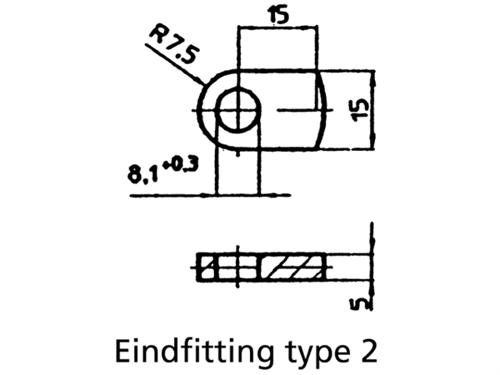

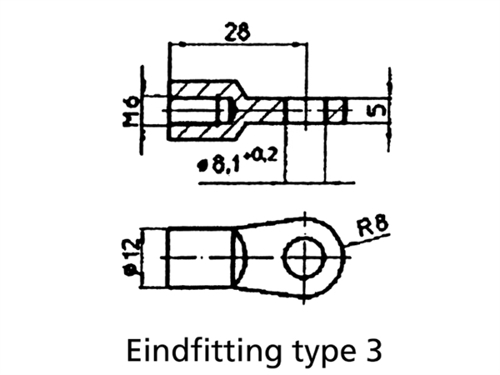

- Final fitting sequence: 1, 2, 3 (as shown in images)
-
