SKU:
TN 00135105
€ 34,80
1-2 weeks delivery time
-
+
Uflex 64417X is a 30 kg gas spring with 365 mm length and 142 mm stroke, designed to open and hold doors open with optimal damping achieved by mounting at a 30° angle toward the pivot point.
- Description
- Ask a Question
-

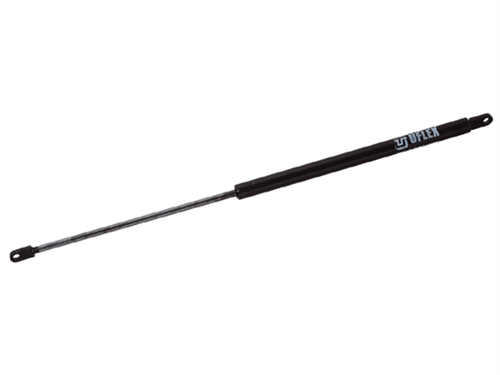

Uflex 64417X - Black Gas Spring, L=365 mm / S=142 mm / 30 kg
Gas struts like this model are pneumatic muscle bundles primarily used for opening and keeping doors or hatches open. The extension force is generated by the pressure of compressed nitrogen gas stored inside a tube, which pushes the piston rod out through a self-cleaning valve. Each tube contains a small amount of oil for lubrication and to provide damping.
- Order number: 00135105
- Supplier code: 64417X
- Barcode: 64417X
- Push force: 30 kg

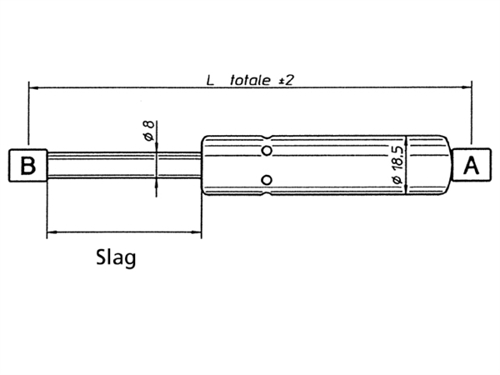

- Total length (fully extended): 365 mm (measured between centers of both end fittings)
- Stroke length: 142 mm
- Rod diameter: 8 mm for most part numbers; 10 mm for parts 00135220, 00135221, 00135222

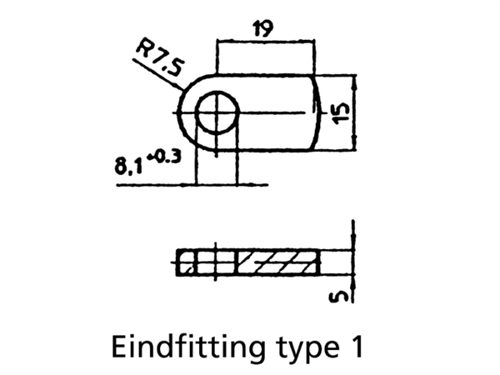

- End fitting A: 1
- Final fitting B: 1
Mounting instructions: For optimal damping, mount the gas spring at a 30° angle to the vertical plane with the piston rod pointing toward the pivot point. For large opening angles, position the piston rod in the direction of the pivot point being opened for improved damping after the horizontal plane is passed. The fitting sequence is shown in images 1, 2, 3.
-
