SKU:
TN 00135104
€ 34,80
1-2 weeks delivery time
-
+
Uflex 64416V provides a 20 kg push force with the same dimensions as the 64415T model, using compressed nitrogen gas and oil for smooth operation and damping, recommended to be mounted at a 30° angle.
- Description
- Ask a Question
-

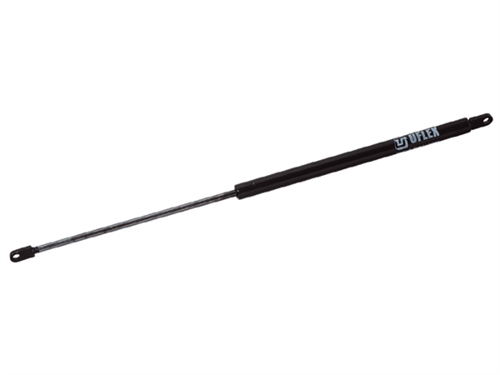

Uflex 64416V - Black Gas Spring, L=365 mm / S=142 mm / 20 kg
These gas struts function as pneumatic muscle bundles, most often used for opening and holding doors or hatches. The extension force results from compressed nitrogen gas pressure inside the tube, which creates a pressure difference with the atmosphere. Gas passes through a self-cleaning valve in the piston rod to push it outward. A small amount of oil inside the tube ensures lubrication and damping during operation.
- Order number: 00135104
- Supplier code: 64416V
- Barcode: 64416V
- Push force: 20 kg

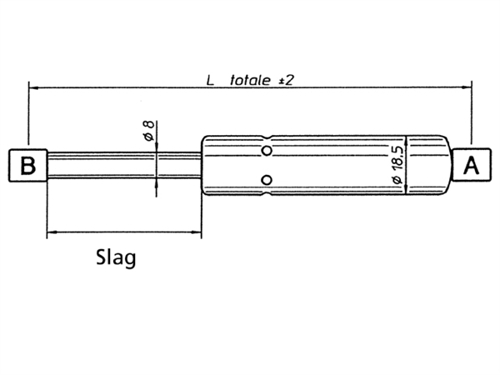

- Total length (fully extended): 365 mm (measured between centers of both end fittings)
- Stroke length: 142 mm
- Rod diameter: 8 mm for most part numbers; 10 mm for parts 00135220, 00135221, 00135222

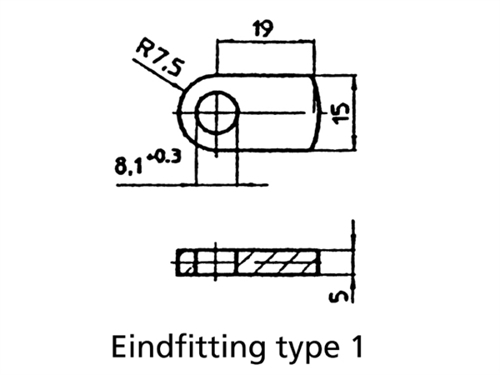

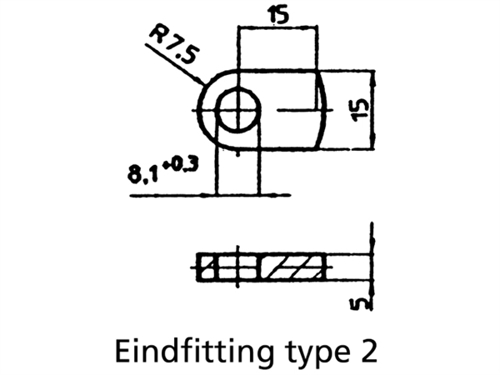

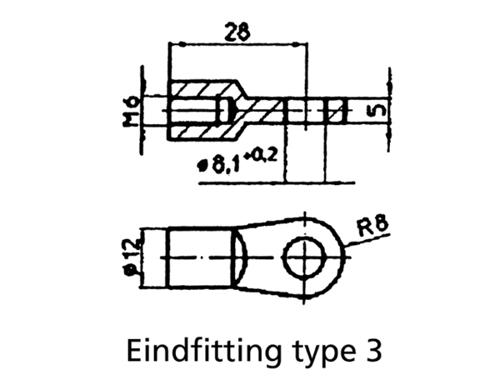

- End fitting A: 1
- Final fitting B: 1
Mounting instructions: For best damping, mount the gas spring at a 30° angle to the vertical plane with the piston rod directed toward the pivot point. In cases of large opening angles, mounting the piston rod in the direction of the pivot point being opened results in better damping after passing the horizontal plane. The fitting sequence is demonstrated in images 1, 2, 3.
-
