SKU:
TN 00135103
€ 34,80
1-2 weeks delivery time
-
+
Uflex 64415T is a 10 kg black gas spring with a longer length of 365 mm and stroke of 142 mm, functioning as a pneumatic muscle bundle for opening and holding doors, with mounting recommendations for optimal damping.
- Description
- Ask a Question
-

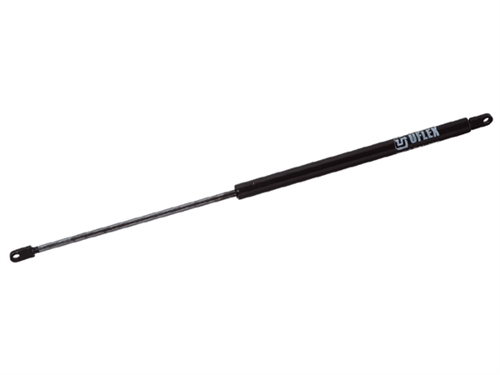

Uflex 64415T - Black Gas Spring, L=365 mm / S=142 mm / 10 kg
These gas struts act as pneumatic muscle bundles, commonly used to open and hold doors or hatches in place. The gas spring operates without blockage by utilizing the pressure of compressed nitrogen gas inside a tube. This pressure difference between the tube and the atmosphere provides the extension force. The gas moves through a self-cleaning valve in the piston rod, which pushes the rod outward. Inside each tube, a small amount of oil is included to provide lubrication and damping.
- Order number: 00135103
- Supplier code: 64415T
- Barcode: 64415T
- Push force: 10 kg

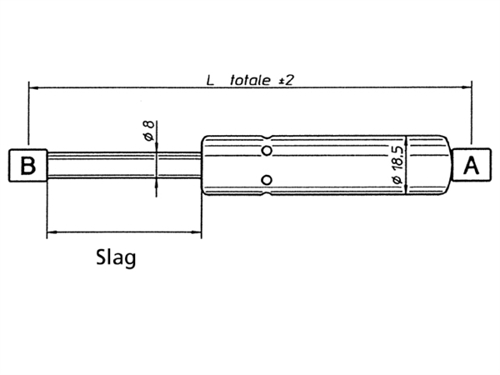

- Total length (fully extended): 365 mm (measured between centers of both end fittings)
- Stroke length: 142 mm
- Rod diameter: 8 mm for most part numbers; 10 mm for parts 00135220, 00135221, 00135222

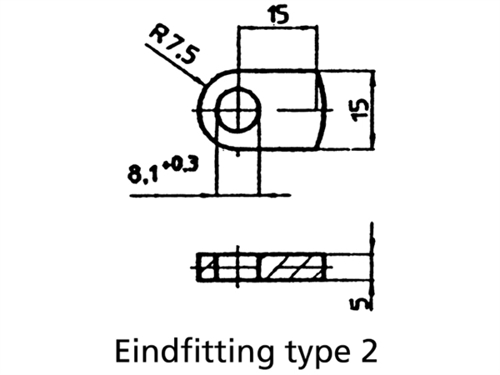

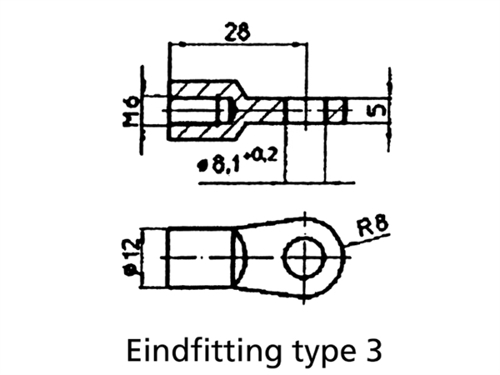

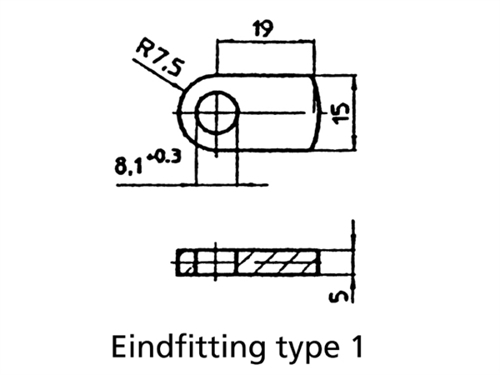

- End fitting A: 1
- Final fitting B: 1
Mounting instructions: Optimal damping occurs when the gas spring is mounted at a 30° angle to the vertical plane with the piston rod directed toward the pivot point. For installations involving large opening angles, it is recommended to mount the piston rod in the direction of the pivot point to be opened. This arrangement provides improved damping after passing the horizontal plane. The final fitting sequence is illustrated in images labeled 1, 2, 3.
-
