SKU:
TN 00135102
€ 31,49
1-2 weeks delivery time
-
+
Uflex 64414R is a black gas spring delivering a 20 kg push force with similar dimensions to the 10 kg model, designed for heavier doors or hatches and optimized for damping when mounted at a 30° vertical angle.
- Description
- Ask a Question
-

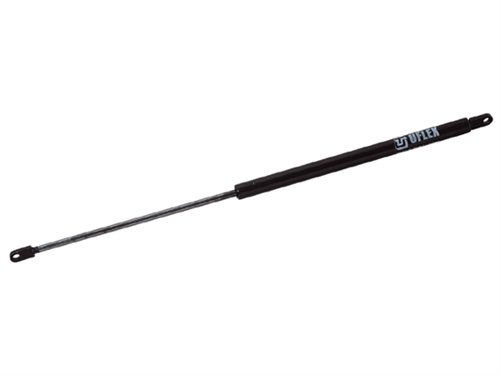

Uflex 64414R - Black Gas Spring, L=257 mm / S=95 mm / 20 kg
Designed to support heavier doors or hatches, this gas spring delivers a push force of 20 kg by using compressed nitrogen gas in a sealed tube. The piston rod is extended through a self-cleaning valve, and internal oil ensures lubrication and smooth motion.
- Order number: 00135102
- Supplier code: 64414R
- Barcode: 64414R
- Push force: 20 kg

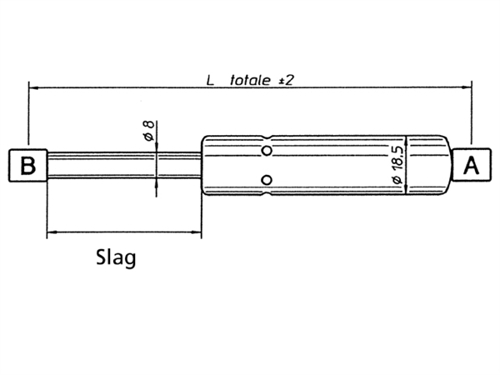

- Total length (fully extended): 257 mm (measured between centers of end fittings)
- Stroke length: 95 mm
- Rod diameter: 8 mm (except part numbers 00135220, 00135221, 00135222 with 10 mm diameter)

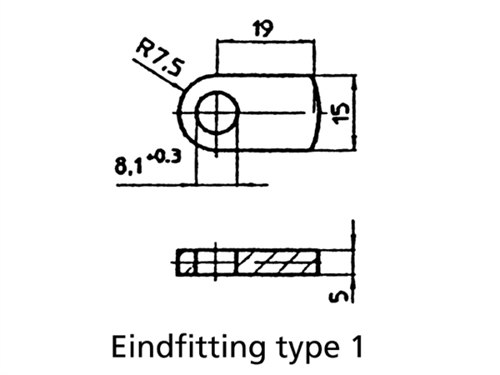

- End fitting A: 1

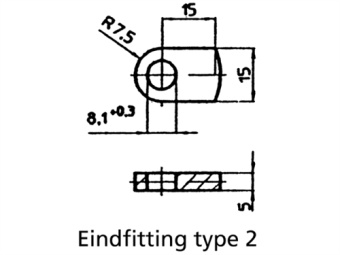

- Final fitting B: 2
- Mounting recommendation: Optimal damping at 30° angle to vertical with piston rod aimed at pivot point. For large opening angles, mounting the rod towards the pivot point enhances damping after passing horizontal plane.
-
