SKU:
TN 00135101
€ 31,49
1-2 weeks delivery time
-
+
Uflex 64413N is a black gas spring providing a 10 kg push force, with a 257 mm total length and 95 mm stroke, using compressed nitrogen gas and oil for smooth operation and damping, best mounted at a 30° angle to vertical.
- Description
- Ask a Question
-

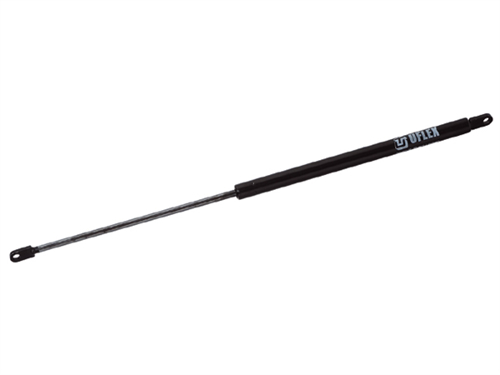

Uflex 64413N - Black Gas Spring, L=257 mm / S=95 mm / 10 kg
This gas spring uses compressed nitrogen gas in a sealed tube to provide a push force of 10 kg, ideal for opening and holding doors or hatches. The piston rod extends as gas flows through a self-cleaning valve, and a small amount of oil inside ensures smooth operation and damping.
- Order number: 00135101
- Supplier code: 64413N
- Barcode: 64413N
- Push force: 10 kg

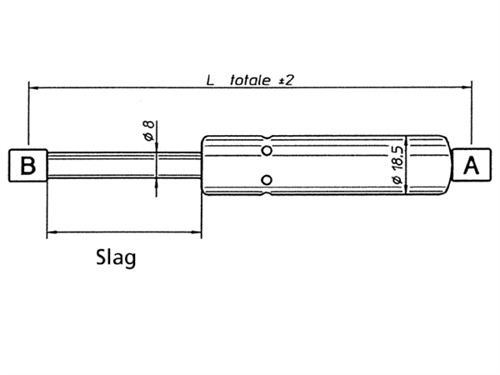

- Total length (fully extended): 257 mm (measured between centers of end fittings)
- Stroke length: 95 mm
- Rod diameter: 8 mm (except part numbers 00135220, 00135221, 00135222 with 10 mm diameter)

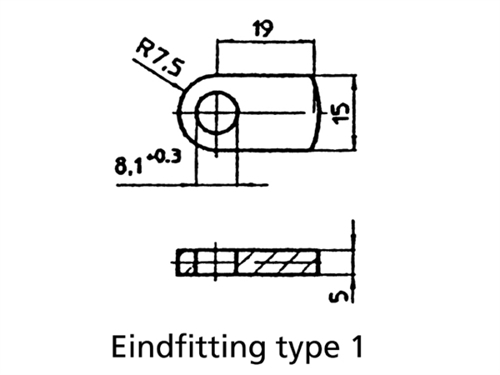

- End fitting A: 1

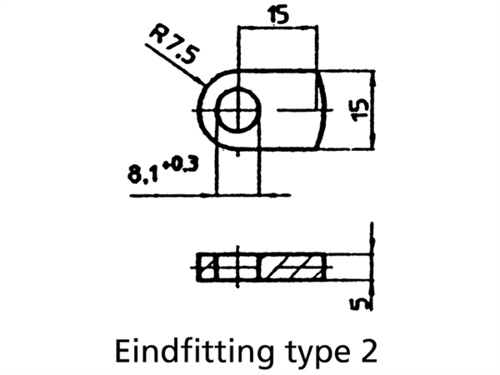

- Final fitting B: 2
- Mounting recommendation: Best damping when installed at a 30° angle to vertical with piston rod towards pivot point. For large opening angles, mounting the rod towards the pivot point improves damping after passing horizontal plane.
-
