SKU:
TN 00135100
€ 31,49
1-2 weeks delivery time
-
+
Uflex 64412L offers a lighter 5 kg push force with the same dimensions as the 10 and 20 kg models, using compressed nitrogen gas and oil for controlled movement and damping.
- Description
- Ask a Question
-

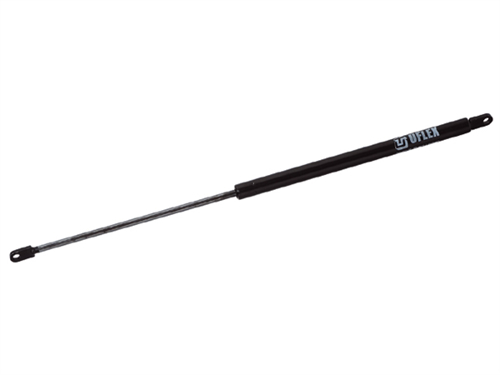

Uflex 64412L - Black Gas Spring, L=257 mm / S=95 mm / 5 kg
This gas spring offers a lighter push force of 5 kg, employing compressed nitrogen gas in a tube to extend the piston rod via a self-cleaning valve. Internal oil provides lubrication and damping for controlled movement of doors or hatches.
- Order number: 00135100
- Supplier code: 64412L
- Barcode: 64412L
- Push force: 5 kg

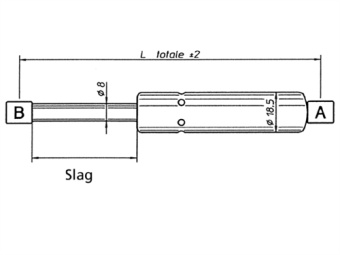

- Total length (fully extended): 257 mm (measured between centers of end fittings)
- Stroke length: 95 mm
- Rod diameter: 8 mm (except part numbers 00135220, 00135221, 00135222 with 10 mm diameter)

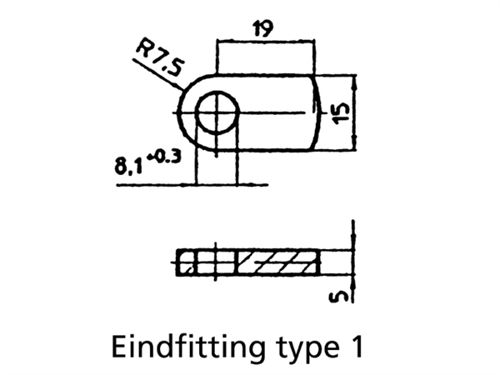

- End fitting A: 1

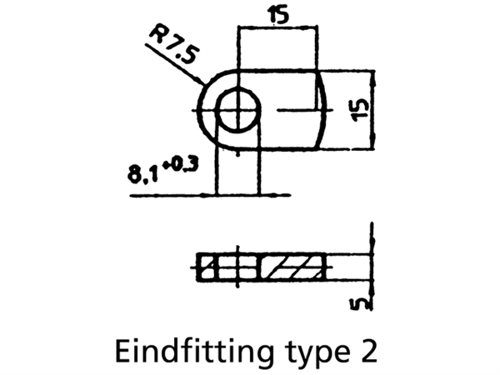

- Final fitting B: 2
- Mounting recommendation: Best damping achieved when mounted at 30° angle to vertical with piston rod facing pivot point. For large opening angles, directing the rod towards the pivot point improves damping after passing horizontal plane.
-
