SKU:
TN 00505359
€ 1.240,36
1-2 weeks delivery time
-
+
The Solara 618100101N M Series Flexible Panel 100Wp offers 100W at 12V with 41 monocrystalline cells protected by EFTE film front and back. It features a seawater-proof cable outlet sealed with screws, an external hotspot protector, and produces 400Wh daily in summer (Germany). With durable materials and innovative design, it is built for marine use, weighing 4.7 kg and sized 798 x 695 x 4 mm, backed by a 5-year warranty.
- Description
- Ask a Question
-

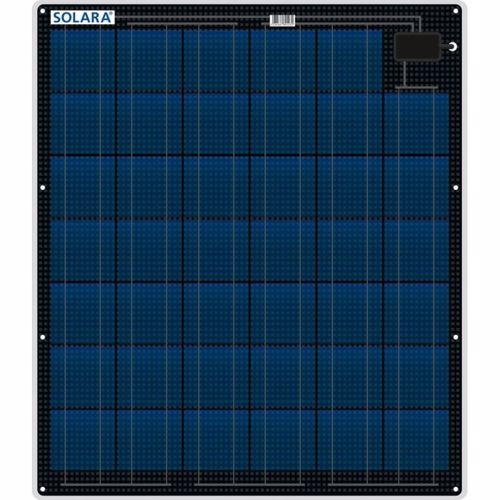

Solara 618100101N - M Series Flexible Panel 100Wp
This 100W, 12V flexible solar panel from Solara’s M Series combines advanced marine-grade materials and design to ensure maximum durability and energy yield in extreme conditions.
- Power output: 100W, 12V, 41 monocrystalline cells
- Extremely resistant protective EFTE film on front and back, especially along all edges
- Small, flat, and robust cable outlet sealed with screws; seawater proof
- Includes external hotspot protector to prevent cell overheating
- Summer daily output in Germany: 400Wh
- Electrical specifications:
- Short-circuit current (Isc): 4.29A
- Open-circuit voltage (Uoc): 27.88V
- Voltage at max power point (Umpp): 23.87V
- Current at max power point (Impp): 4.10A
- Cell dimensions: 104 x 104 mm
- Operating temperature range: -40 to 85°C
- 3m cable (3x1.5 mm²)
- Weight: 4.7 kg
- Dimensions (LxWxH): 798 x 695 x 4 mm
- Warranty: 5 years
- Order number: 00505359
- Supplier code: 618100101N
- Proven marine solar panels for over 20 years, delivering long service life on all oceans
- Innovative aluminium-sandwich support plate ensures stability and excellent heat dissipation
- Additional solar cells improve charging efficiency
- All materials resist extreme heat, high humidity, sea water, and saltwater
- Cell protector includes external protection diodes
- Cable lead-through prepared in carrier plate
-
