The black Nightwave D1 model shares features with the white and grey versions, providing excellent night vision in low light, a durable IP67 waterproof design, multiple video output options, WiFi connectivity, and full accessory sets for reliable marine operation.
- Description
- Ask a Question
-

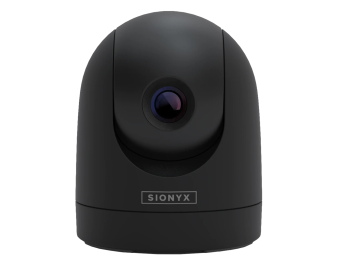

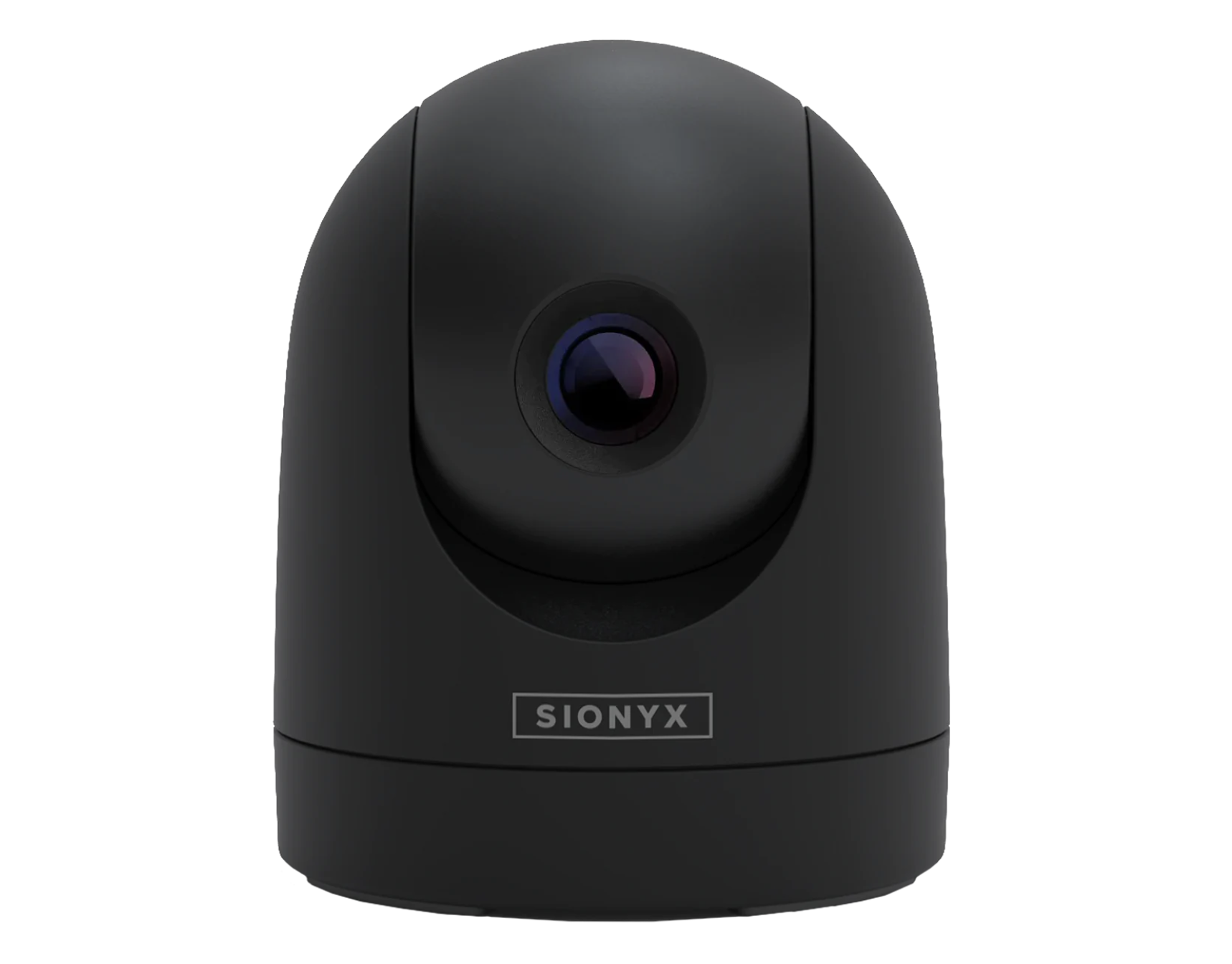

SiOnyx C014900 - Nightwave D1 Night Vision Viewer, Black
The black Nightwave D1 model uses SIONYX’s exclusive Black Silicon CMOS sensor to provide exceptional night vision in ultra-low light conditions without relying on white light or costly thermal imaging. Rugged and IP67 certified, it is built for tough marine conditions and offers versatile mounting and video streaming options.
- Order number: 00850002
- Supplier code: C014900
- Barcode: 811251020248
- Color: Black
- Dimensions: 127 x 127 x 152 mm
- Field of view: 44 degrees
- Focus range: Sharp from 10 meters to infinity
- Mounting: 1/4" x 20 camera tripod thread
- Weight: 870 grams
- Objective lens diameter: 16 mm
- Daylight usable: Yes
- Power supply: 12 Volt / 5 Volt USB
- Operating temperature: -20°C to +50°C
- Video output (analog): NTSC 640x480 @30 Hz, 50 Ohms
- Video connections: SMA, BNC, RCA, USB
- Wireless communication: WiFi
- WiFi video output: 640x480 at over 20 frames per second
- Weatherproof rating: IP67
- Sensor type: XQE1350 BSI CMOS
- Sensor resolution: 1280 x 1024 pixels
- Image refresh rate: 30 Hz
- Cable lengths: 5 meter video/power cable (50 Ohm), 2 meter USB cable
- Includes:
- 5 meter analog video cable
- SMA to BNC adapter
- BNC to RCA adapter
- Power fuse and fuse holder
- 3 meter digital video USB cable
- Base gasket and mounting materials
- Manual
- Features:
- Stable 44º field of view for enhanced awareness of obstacles and vessels
- IP67 rating for protection against water, sand, salt, and dust; nitrogen-filled lens to avoid fogging
- Flexible installation for major MFD integration and WiFi streaming to SIONYX mobile app
-
