The white Nightwave D1 offers the same high-sensitivity Black Silicon CMOS sensor for low-light marine navigation, with stable 44º field of view, IP67 waterproof rating, multiple video connections, WiFi streaming, and comprehensive accessory kits for easy installation and use.
- Description
- Ask a Question
-

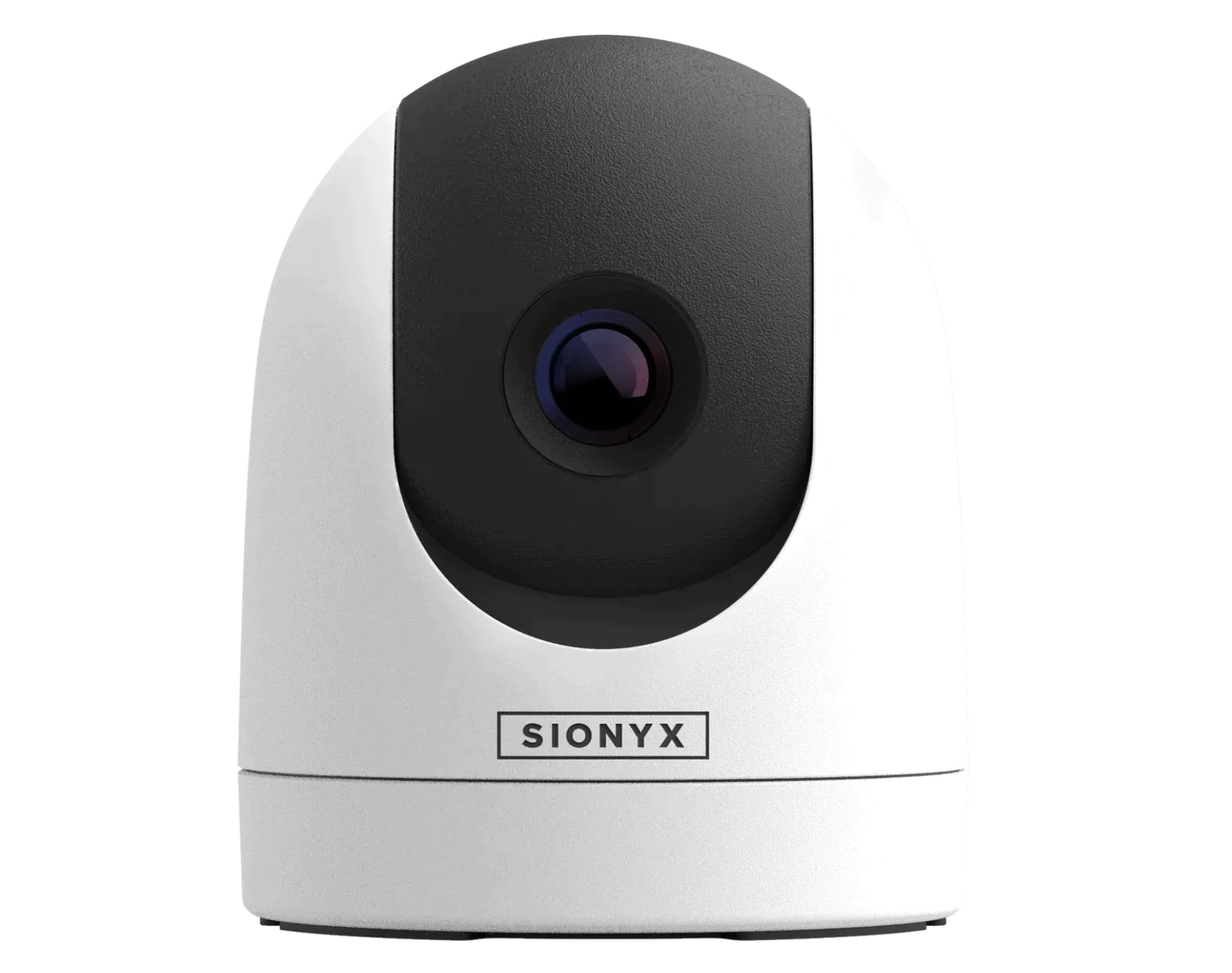

SiOnyx C012800 - Nightwave D1 Night Vision Viewer, White
The Nightwave D1 in white features a highly sensitive Black Silicon CMOS sensor that enhances low-light navigation by allowing clear vision in moonless starlight without needing white light or thermal cameras. Designed for harsh marine environments, it is IP67 certified and provides reliable color night vision for safe and confident navigation on the water.
- Order number: 00850000
- Supplier code: C012800
- Barcode: 811251020149
- Color: White
- Dimensions: 127 x 127 x 152 mm
- Field of view: 44 degrees
- Focus range: Sharp from 10 meters to infinity
- Mounting: 1/4" x 20 camera tripod thread
- Weight: 870 grams
- Objective lens diameter: 16 mm
- Daylight usable: Yes
- Power supply: 12 Volt / 5 Volt USB
- Operating temperature: -20°C to +50°C
- Video output (analog): NTSC 640x480 @30 Hz, 50 Ohms
- Video connections: SMA, BNC, RCA, USB
- Wireless communication: WiFi
- WiFi video output: 640x480 at over 20 frames per second
- Weatherproof rating: IP67
- Sensor type: XQE1350 BSI CMOS
- Sensor resolution: 1280 x 1024 pixels
- Image refresh rate: 30 Hz
- Cable lengths: 5 meter video/power cable (50 Ohm), 2 meter USB cable
- Includes:
- 5 meter analog video cable
- SMA to BNC adapter
- BNC to RCA adapter
- Power fuse and fuse holder
- 3 meter digital video USB cable
- Base gasket and assembly materials
- Manual
- Features:
- Stable 44º field of view for improved situational awareness
- IP67 waterproof, sand, salt, and dust resistant with nitrogen-filled lens to prevent fogging
- Seamless integration with major MFDs and WiFi streaming to mobile devices
-
