SKU:
TN 00320626
€ 155,78
1-2 weeks delivery time
-
+
The 24V Jabsco Par-Max 3 freshwater pump model 31395-4024-3A provides 11 liters per minute flow at 40 PSI with ignition protection and multiple certifications. It features self-priming up to 3 meters, quick connect fittings, inline strainer, and operates quietly with a 3 amp current draw. Dimensions and weight are optimized for easy installation and reliable performance.
- Description
- Ask a Question
-

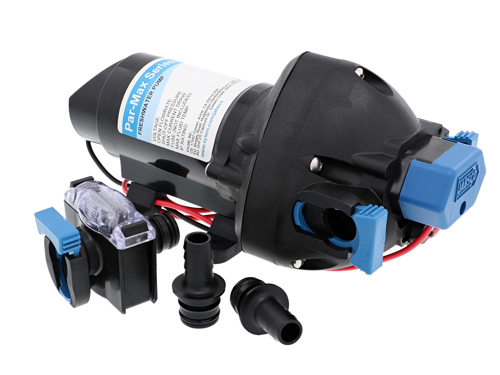

Jabsco 31395-4024-3A - Par-Max 3 Freshwater Pump 24V 11 L/Min 40 Psi
This Jabsco Par-Max 3 freshwater pump model 31395-4024-3A operates at 24 volts DC and delivers a flow rate of 11 liters per minute (2.9 US GPM). It is designed for reliable water supply with ignition protection and multiple certifications.
- Approvals: ISO 8846 Ignition Protected, C.E Certified, RCM compliant
- Cut-in pressure: 15 PSI
- Cut-out pressure: 40 PSI (2.8 Bar)
- Flow rate: 11 LPM (2.9 US GPM)
- Fuse requirement: 5A (not included)
- Dimensions (HxWxD): 108mm x 108mm x 231mm
- Lead wires: 12" (305mm), 16 AWG (1.5mm²)
- Includes inline strainer (40 mesh) and quick connect fittings
- Operating temperature range: 0°C to 60°C (32°F to 140°F), for ambient and fluid
- Voltage: 24V DC
- Weight: 1.8 kg
- Pressure rating: Operating max 40 PSI (2.8 bar), Inlet max 30 PSI (2.1 bar)
- Replaces model JAB-31395-0394
- Self-primes up to 10 ft (3 m) dry prime
- Fittings for 13mm (1/2") ID hose on inlet and outlet
- Current draw: 3 Amps at 40 PSI (2.8 bar)
- General info: Order number 00320626, Supplier code 31395-4024-3A, Barcode 671880841825
- Pump type: 3 chamber aperture
- Dimensions (LxWxH): 230 x 107 x 107 mm
- Suction height: 1.8 m
- Product weight: 1.6 kg
-
