SKU:
CN C-AA48020000
€ 14.560,83
1-2 weeks delivery time
-
+
The Craftsman CM4.80 Diesel Engine with intercooling is designed for high-performance applications, providing 59 kW/80 HP and 175 Nm of torque with a natural aspiration system. The engine features intercooling with a heat exchanger and includes a 110 A alternator. It has a 15° max installation angle, flexible engine mounts, and weighs 235 kg, with a 76 mm exhaust diameter and the option for a calorifier connection.
- Description
- Ask a Question
-

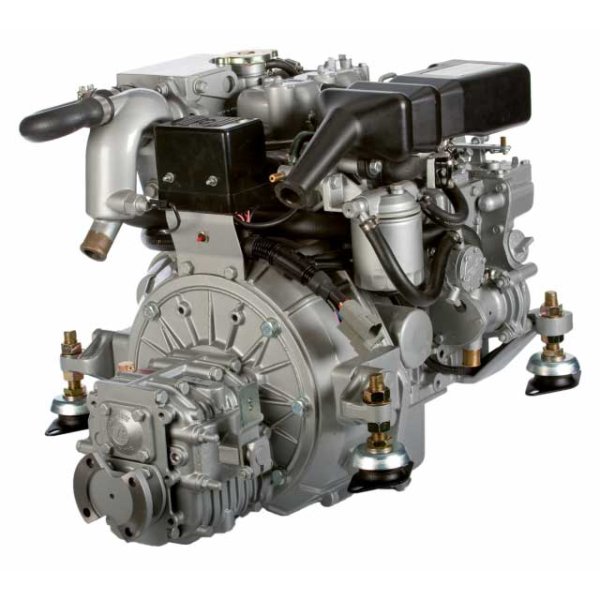

Craftsman CM4.80 Diesel Engine, Intercooling, No Gearbox
This engine is designed for reliable, high-performance use in various industrial applications. With a robust cooling system and impressive power output, it ensures optimal operation under demanding conditions.
- Basic Engine: Hyundai
- Cylinders: 4 In Line
- Cylinder Capacity: 2.607 cm³
- Power: 59 kW / 80 hp
- Max. Engine Speed: 4.000 rpm
- Max. Torque: 175 Nm
- Aspiration: Natural
- Alternator: 110 A / 12 V (Bosch / SEG)
- Cooling System: Intercooling, With Heat Exchanger
- Flexible Engine Mounts: CM Type 7
- Calorifier Connection: Standard
- Exhaust Diameter: ø76 mm
- Electronic Protection: 10 A Circuit Breaker
- Stop Solenoid: Energized To Run
- Max. Installation Angle: 15° (Backwards)
- Weight: 235 kg
- Refrigeration: Intercooling
- Gearbox: No
-
