SKU:
CN C-AA48020001
€ 17.888,73
1-2 weeks delivery time
-
+
The Craftsman CM4.80 Diesel Engine with intercooling and gearbox TM345 offers added versatility and power, including a TM345 gearbox. It provides 59 kW/80 HP and 175 Nm of torque with natural aspiration, intercooling with a heat exchanger, and a 110 A alternator. The engine has flexible engine mounts, a 15° max installation angle, and weighs 235 kg, with a 76 mm exhaust diameter and a calorifier connection option.
- Description
- Ask a Question
-

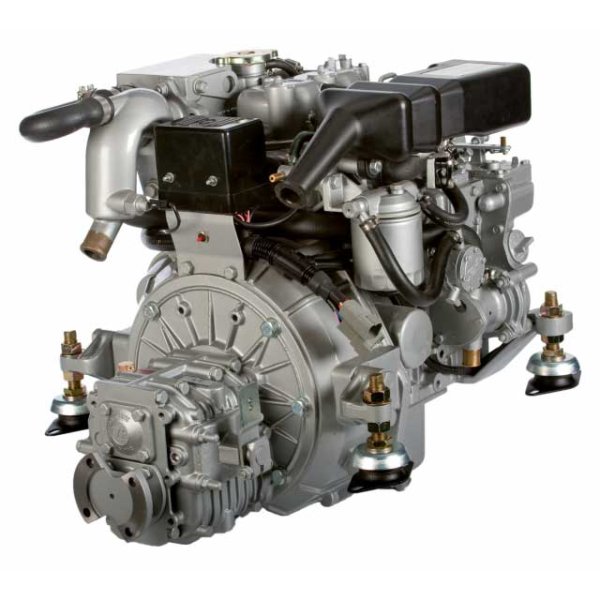

Craftsman CM4.80 Diesel Engine, Intercooling, Gearbox TM345
This engine variant offers the same core specifications as the previous one, but it is equipped with a Gearbox TM345 for added versatility and operational flexibility. Perfect for tasks that require robust power and control.
- Basic Engine: Hyundai
- Cylinders: 4 In Line
- Cylinder Capacity: 2.607 cm³
- Power: 59 kW / 80 hp
- Max. Engine Speed: 4.000 rpm
- Max. Torque: 175 Nm
- Aspiration: Natural
- Alternator: 110 A / 12 V (Bosch / SEG)
- Cooling System: Intercooling, With Heat Exchanger
- Flexible Engine Mounts: CM Type 7
- Calorifier Connection: Standard

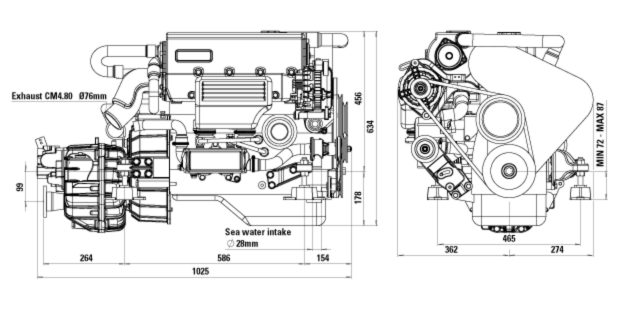

- Exhaust Diameter: ø76 mm
- Electronic Protection: 10 A Circuit Breaker
- Stop Solenoid: Energized To Run
- Max. Installation Angle: 15° (Backwards)
- Weight: 235 kg
- Refrigeration: Intercooling
- Gearbox: TM345
-
